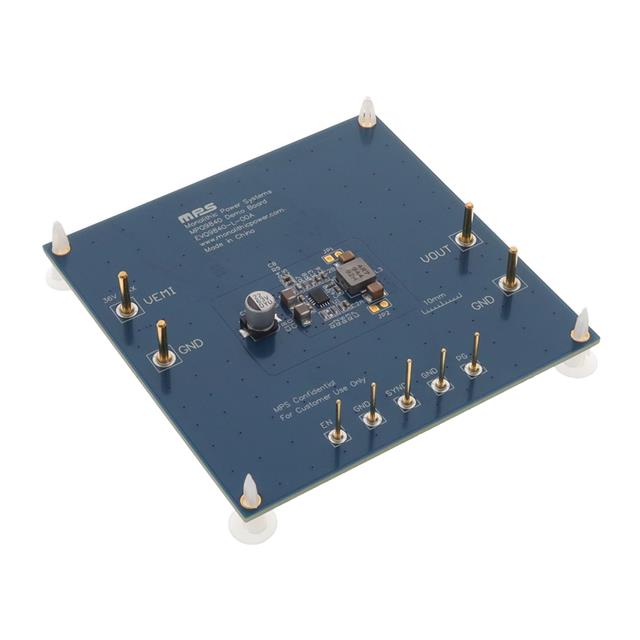

EVQ9840-L-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVALUATION BOARD, SYNC BUCK CONVERTER ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVALUATION BOARD, SYNC BUCK CONVERTER ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Current - Output	Board Type	Supplied Contents	Voltage - Output	Main Purpose	Utilized IC / Part	Regulator Topology	Mounting Type	Voltage - Input (Max) [Max]	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Qualification	Package / Case	Function	Number of Outputs	Synchronous Rectifier	Frequency - Switching [Max]	Frequency - Switching [Min]	Supplier Device Package	Voltage - Output (Min/Fixed)	Output Configuration	Voltage - Output (Max)	Topology
MONOLITHIC POWER SYSTEMS (MPS) EVQ9840-L-00A	450 kHz	36 V	5 V	Non-Isolated	1	3.5 A	Fully Populated	Board(s)	5 V	DC/DC Step Down	MP9840 MPQ9840	Buck
MONOLITHIC POWER SYSTEMS (MPS) MPQ9840GL-Z						3.5 A							Surface Mount	36 V	Adjustable	-40 °C	125 ¯C	Automotive	AEC-Q100	16-PowerVQFN	Step-Down	1		2.5 MHz	350 kHz	16-QFN (3x4)	0.8 V	Positive	36 V	Buck

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.00
Newark	Each	1	$ 75.04

General part information

MP9840, MPQ9840 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources

No documents available
