VND05B-E

Obsolete

STMicroelectronics

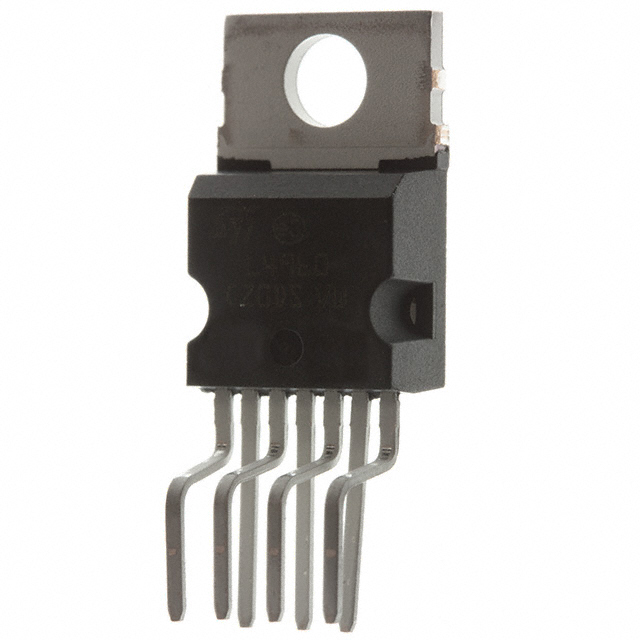

IC PWR SMART SSR N-CH HEPTAWATT7

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC PWR SMART SSR N-CH HEPTAWATT7

Technical Specifications

Parameters and characteristics for this part

Specification	VND05B-E

Current - Output (Max) [Max]	1.6 A
Fault Protection	Open Load Detect, Over Temperature
Features	Status Flag
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	Heptawatt-7
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	200 mOhm
Supplier Device Package	7-HEPTAWATT
Switch Type	General Purpose
Voltage - Load [Max]	26 V
Voltage - Load [Min]	6 V
Voltage - Supply (Vcc/Vdd)	False

Part	Package / Case	Mounting Type	Switch Type	Output Configuration	Fault Protection	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Voltage - Load [Max]	Voltage - Load [Min]	Rds On (Typ)	Output Type	Current - Output (Max) [Max]	Supplier Device Package	Features	Number of Outputs	Voltage - Supply (Vcc/Vdd)	Ratio - Input:Output [custom]
STMicroelectronics VND05BSP13TR	PowerSO-10 Exposed Bottom Pad	Surface Mount	General Purpose	High Side	Open Load Detect Over Temperature	On/Off	150 °C	-40 °C	Non-Inverting	26 V	6 V	200 mOhm	N-Channel	1.6 A	10-PowerSO	Status Flag	2		1:1
STMicroelectronics VND05B-E	Heptawatt-7	Through Hole	General Purpose	High Side	Open Load Detect Over Temperature	On/Off	150 °C	-40 °C	Non-Inverting	26 V	6 V	200 mOhm	N-Channel	1.6 A	7-HEPTAWATT	Status Flag	2		1:1
