RR2P-UAC120V

Active

IDEC

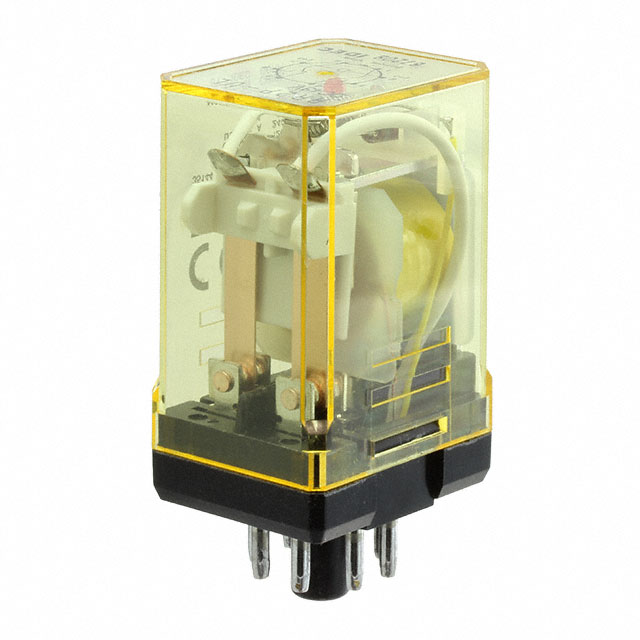

PLUG-IN RELAY; CONTACTS:DPDT; CONTACT CARRY CURRENT:10A; COIL VOLTAGE AC MAX:120V; RELAY MOUNTING:PLUG-IN; RELAY TERMINALS:8-PIN OCTAL; COIL RESISTANCE:2100OHM; CONTACT CARRYING POWER:1.5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RR2P-UAC120V

Active

IDEC

PLUG-IN RELAY; CONTACTS:DPDT; CONTACT CARRY CURRENT:10A; COIL VOLTAGE AC MAX:120V; RELAY MOUNTING:PLUG-IN; RELAY TERMINALS:8-PIN OCTAL; COIL RESISTANCE:2100OHM; CONTACT CARRYING POWER:1.5W

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RR2P-UAC120V

Approval Agency	CSA, TUV, cURus, CE
Coil Current	20.5 mA
Coil Resistance	2.1 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	10 A
Load - Max Switching	300 W, 2400 VA
Mounting Type	Socketable
Must Operate Voltage	96 VAC
Must Release Voltage	36 VAC
Operate Time	25 ms
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage	30 VDC, 240 VAC
Termination Style	Plug In, 8 Pin (Octal)

RR2P-U Series

Part	Operate Time	Coil Current	Relay Type	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Must Release Voltage	Mounting Type	Release Time	Coil Type	Termination Style	Coil Resistance	Must Operate Voltage	Contact Rating (Current)	Switching Voltage	Coil Voltage	Contact Material	Load - Max Switching	Features
IDEC RR2P-UAC230V	25 ms	11 mA	General Purpose	DPDT (2 Form C)	-25 °C	40 °C	CE CSA cURus TUV	69 VAC	Socketable	25 ms	Non Latching	Plug In 8 Pin (Octal)	7.83 kOhms	184 VAC	10 A	30 VDC 240 VAC	230 VAC	Silver (Ag)	300 W 2400 VA
IDEC RR2P-UDC6V	25 ms	240 mA	General Purpose	DPDT (2 Form C)	-25 °C	40 °C	CE CSA cURus TUV	0.6 VDC	Socketable	25 ms	Non Latching	Plug In 8 Pin (Octal)	25 Ohms	4.8 VDC	10 A	30 VDC 240 VAC		Silver (Ag)	300 W 2400 VA
IDEC RR2P-UAC6V	25 ms	420 mA	General Purpose	DPDT (2 Form C)	-25 °C	40 °C	CE CSA cURus TUV	1.8 VAC	Socketable	25 ms	Non Latching	Plug In 8 Pin (Octal)	4.9 Ohms	4.8 VAC/DC	10 A	30 VDC 240 VAC	6 VAC	Silver (Ag)	300 W 2400 VA
IDEC RR2P-ULCDC24V	25 ms	60 mA	General Purpose	DPDT (2 Form C)	-25 °C	40 °C	CE CSA cURus TUV	2.4 VDC	Socketable	25 ms	Non Latching	Plug In 8 Pin (Octal)	400 Ohms	19.2 VDC	10 A	30 VDC 240 VAC	24 VDC	Silver (Ag)	300 W 2400 VA	Lighted Indicator Test Button
IDEC RR2P-UDC24V	25 ms	60 mA	General Purpose	DPDT (2 Form C)	-25 °C	40 °C	CE CSA cURus TUV	2.4 VDC	Socketable	25 ms	Non Latching	Plug In 8 Pin (Octal)	400 Ohms	19.2 VDC	10 A	30 VDC 240 VAC	24 VDC	Silver (Ag)	300 W 2400 VA
IDEC RR2P-UAC200V	25 ms		General Purpose	DPDT (2 Form C)	-25 °C	40 °C	CE CSA cURus TUV	60 VAC/DC	Socketable	25 ms	Non Latching	Plug In 8 Pin (Octal)	5.74 kOhms	160 VAC	10 A	30 VDC 240 VAC	200 VAC	Silver (Ag)	300 W 2400 VA
IDEC RR2P-UAC220V	25 ms	11.5 mA	General Purpose	DPDT (2 Form C)	-25 °C	40 °C	CE CSA cURus TUV	66 VAC	Socketable	25 ms	Non Latching	Plug In 8 Pin (Octal)	7.36 kOhms	176 VAC	10 A	30 VDC 240 VAC	220 VAC/DC	Silver (Ag)	300 W 2400 VA
IDEC RR2P-ULAC120V	25 ms	20.5 mA	General Purpose	DPDT (2 Form C)	-25 °C	40 °C	CE CSA cURus TUV	36 VAC	Socketable	25 ms	Non Latching	Plug In 8 Pin (Octal)	2.1 kOhms	96 VAC	10 A	30 VDC 240 VAC	120 VAC	Silver (Ag)	300 W 2400 VA	Lighted Indicator
IDEC RR2P-UAC120V	25 ms	20.5 mA	General Purpose	DPDT (2 Form C)	-25 °C	40 °C	CE CSA cURus TUV	36 VAC	Socketable	25 ms	Non Latching	Plug In 8 Pin (Octal)	2.1 kOhms	96 VAC	10 A	30 VDC 240 VAC	120 VAC	Silver (Ag)	300 W 2400 VA
IDEC RR2P-ULAC6V	25 ms	420 mA	General Purpose	DPDT (2 Form C)	-25 °C	40 °C	CE CSA cURus TUV	1.8 VAC	Socketable	25 ms	Non Latching	Plug In 8 Pin (Octal)	4.9 Ohms	4.8 VAC/DC	10 A	30 VDC 240 VAC	6 VAC	Silver (Ag)	300 W 2400 VA	Lighted Indicator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.90
		10	$ 20.88
		25	$ 19.78
		50	$ 18.99
		100	$ 18.24
		250	$ 17.28
		500	$ 16.59
Newark	Each	1	$ 25.36
		5	$ 24.72
		10	$ 24.09
		25	$ 22.82
		50	$ 21.55
		100	$ 20.28

Description

General part information

RR2P-U Series

The RR2P-UAC120V is a general-purpose Power Relay with AC coil. This RR-series power relay has DPDT Ag contacts with pin terminal. High reliability and long service life.
