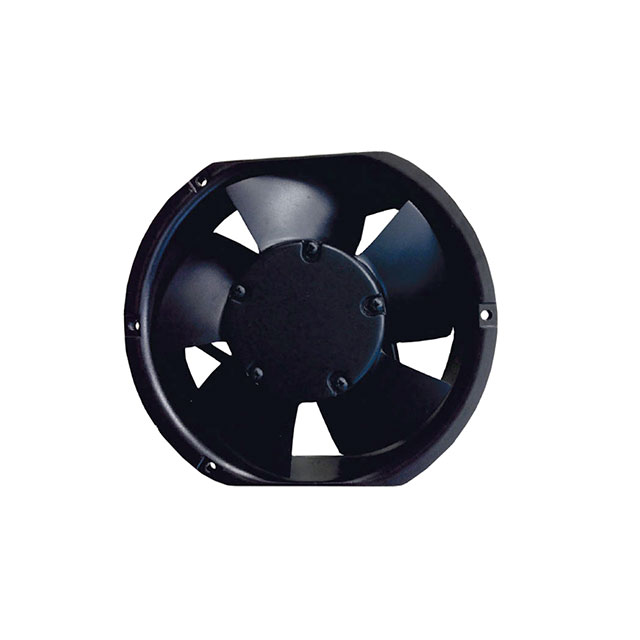

FDA2-17238NBHT3F-L

Active

Qualtek

FAN AXIAL 172X38.5MM 115VAC TERM

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 172X38.5MM 115VAC TERM

Technical Specifications

Parameters and characteristics for this part

Specification	FDA2-17238NBHT3F-L

Air Flow	240 CFM
Air Flow	6.72 mł/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.21 A
Fan Type	Tubeaxial
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	100000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	59 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	25 W
RPM	3100 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	151 mm
Static Pressure	0.571 in H2O
Static Pressure	142.2 Pa
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	816.5 g
Weight	1.8 lbs
Width [y]	38.5 mm

Part	Air Flow	Air Flow	Noise	Voltage - Rated	Static Pressure	Static Pressure	Current Rating (Amps)	RPM	Approval Agency	Material - Frame	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Weight	Weight	Power (Watts)	Fan Type	Termination	Lifetime @ Temp.	Ingress Protection	Bearing Type
Qualtek FDA2-17238NBHT3F-L	240 CFM	6.72 mł/min	59 dB(A)	115 VAC	0.571 in H2O	142.2 Pa	0.21 A	3100 RPM	CE cURus TUV	Aluminum	38.5 mm	-20 °C	70 °C	-20 C	70 °C	Plastic	151 mm	Rectangular/Rounded	172 mm	816.5 g	1.8 lbs	25 W	Tubeaxial	2 Terminals	100000 Hrs	IP54 - Dust Protected Water Resistant	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 115VAC Rectangular/Rounded - 172mm L x 151mm H Ball 240.0 CFM (6.72m³/min) 2 Terminals
