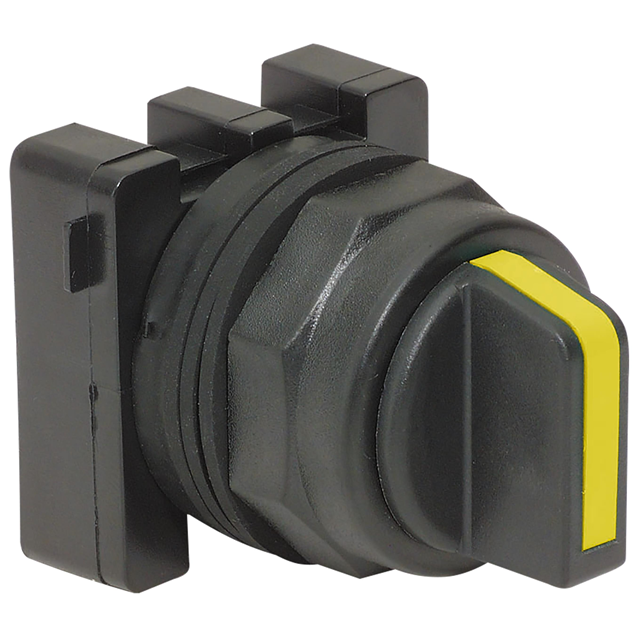

SSO3-SLYW-NO/NO

Active

c3controls

SWITCH SELECT 3POS DPST 10A 72V

Search across all available documentation for this part.

Active

c3controls

SWITCH SELECT 3POS DPST 10A 72V

Technical Specifications

Parameters and characteristics for this part

Specification	SSO3-SLYW-NO/NO

Approval Agency	cULus, CSA, CE
Circuit	DPST-NO
Current Rating (Amps)	10 A, 5 A
Depth Behind Flange	42.9 mm
Illumination	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30.2 mm
Switch Function	On-Off-Off, Off-Off-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	72 V
Voltage Rating - DC	28 V

Part	Actuator Type	Requires	Type	Illumination	Panel Cutout Dimensions [diameter]	Switch Function	Approval Agency	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Depth Behind Flange	Termination Style	Voltage Rating - AC	Current Rating (Amps)	Circuit	Voltage Rating - DC
c3controls SSO3-SHWE	Selector	Contact Block(s)	Maintained	Non-Illuminated	30.2 mm
c3controls SSO3-SLYW-NO/NO			Standard	Non-Illuminated	30.2 mm	Off-Off-On On-Off-Off	CE CSA cULus	IP65 - Dust Tight Water Resistant	-40 °C	55 °C	500000 Cycles	42.9 mm	Screw Terminal	72 V	5 A 10 A	DPST-NO	28 V
c3controls SSO3-SHWE-NO/NO			Standard	Non-Illuminated	30.2 mm	Off-Off-On On-Off-Off	CE CSA cULus	IP65 - Dust Tight Water Resistant	-40 °C	55 °C	500000 Cycles	42.9 mm	Screw Terminal	72 V	5 A 10 A	DPST-NO	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 34.83

General part information

Selector Switch 3 Position DPST-NO 10A (AC), 5A (DC) 72 V Panel Mount
