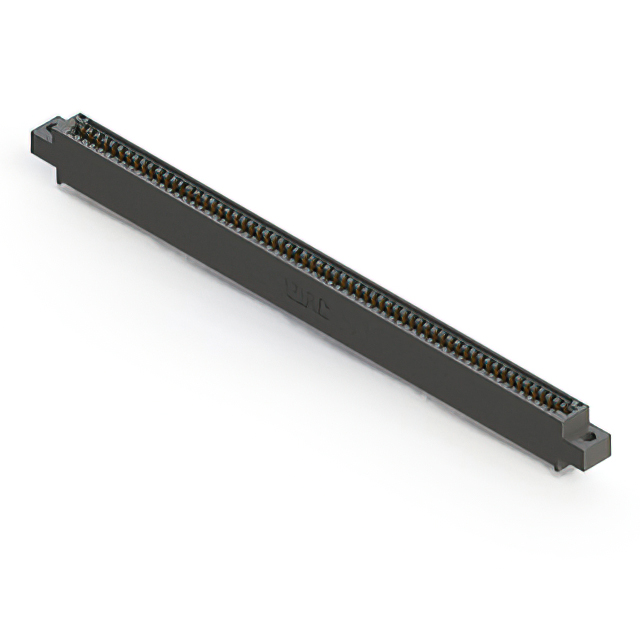

895-064-542-604

Active

EDAC Inc.

CONN EDGE SINGLE FML 64POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-064-542-604

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature [diameter]	0.156 in
Flange Feature [diameter]	3.96 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	64
Number of Positions/Bay/Row [custom]	64
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

895-064 Series

...

Part	Pitch [x]	Pitch [x]	Mounting Type	Read Out	Contact Material	Termination Rows	Contact Type	Material - Insulation	Gender	Card Type	Number of Positions/Bay/Row [custom]	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Color	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature	Features
EDAC Inc. 895-064-521-102	2.54 mm	0.1 in	Through Hole	Single	Copper Alloy	1	Cantilever	Polyphenylene Sulfide (PPS)	Female	Non Specified - Single Edge	64	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	64	1	125 °C	-40 °C
EDAC Inc. 895-064-542-407	2.54 mm	0.1 in	Through Hole	Single	Copper Alloy	1	Cantilever	Polyphenylene Sulfide (PPS)	Female	Non Specified - Single Edge	64	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black			M3 Threaded Insert Top Mount Opening	10 Áin	0.25 Ám	64	1	125 °C	-40 °C
EDAC Inc. 895-064-560-812	2.54 mm	0.1 in	Board Edge Straddle Mount	Dual	Copper Alloy	2	Cantilever	Polyphenylene Sulfide (PPS)	Female	Non Specified - Dual Edge	32	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black			Side Mount Opening Unthreaded	10 Áin	0.25 Ám	64	2	125 °C	-40 °C	3.25 mm	0.128 in	Card Extender
EDAC Inc. 895-064-542-204	2.54 mm	0.1 in	Through Hole	Dual	Copper Alloy	2	Cantilever	Polyphenylene Sulfide (PPS)	Female	Non Specified - Dual Edge	32	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	64	2	125 °C	-40 °C
EDAC Inc. 895-064-521-812	2.54 mm	0.1 in	Through Hole	Dual	Copper Alloy	2	Cantilever	Polyphenylene Sulfide (PPS)	Female	Non Specified - Dual Edge	32	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black			Side Mount Opening Unthreaded	10 Áin	0.25 Ám	64	2	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 895-064-544-203	2.54 mm	0.1 in	Through Hole	Dual	Copper Alloy	2	Cantilever	Polyphenylene Sulfide (PPS)	Female	Non Specified - Dual Edge	32	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	2.95 mm	0.116 in	Floating Bobbin Flush Mount	10 Áin	0.25 Ám	64	2	125 °C	-40 °C
EDAC Inc. 895-064-523-607	2.54 mm	0.1 in	Through Hole	Single	Copper Alloy	1	Cantilever	Polyphenylene Sulfide (PPS)	Female	Non Specified - Single Edge	64	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black			M3 Threaded Insert Top Mount Opening	10 Áin	0.25 Ám	64	1	125 °C	-40 °C
EDAC Inc. 895-064-559-403	2.54 mm	0.1 in	Through Hole Right Angle	Single	Copper Alloy	1	Cantilever	Polyphenylene Sulfide (PPS)	Female	Non Specified - Single Edge	64	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	2.95 mm	0.116 in	Floating Bobbin Top Mount Opening	10 Áin	0.25 Ám	64	1	125 °C	-40 °C
EDAC Inc. 895-064-542-604	2.54 mm	0.1 in	Through Hole	Single	Copper Alloy	1	Cantilever	Polyphenylene Sulfide (PPS)	Female	Non Specified - Single Edge	64	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	3.96 mm	0.156 in	Top Mount Opening Unthreaded	10 Áin	0.25 Ám	64	1	125 °C	-40 °C
EDAC Inc. 895-064-523-203	2.54 mm	0.1 in	Through Hole	Dual	Copper Alloy	2	Cantilever	Polyphenylene Sulfide (PPS)	Female	Non Specified - Dual Edge	32	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	2.95 mm	0.116 in	Floating Bobbin Flush Mount	10 Áin	0.25 Ám	64	2	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 132.26
Newark	Each	1	$ 168.55
		100	$ 90.95
		250	$ 79.09
		500	$ 72.41
		1000	$ 62.00

Description

General part information

895-064 Series

64 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
