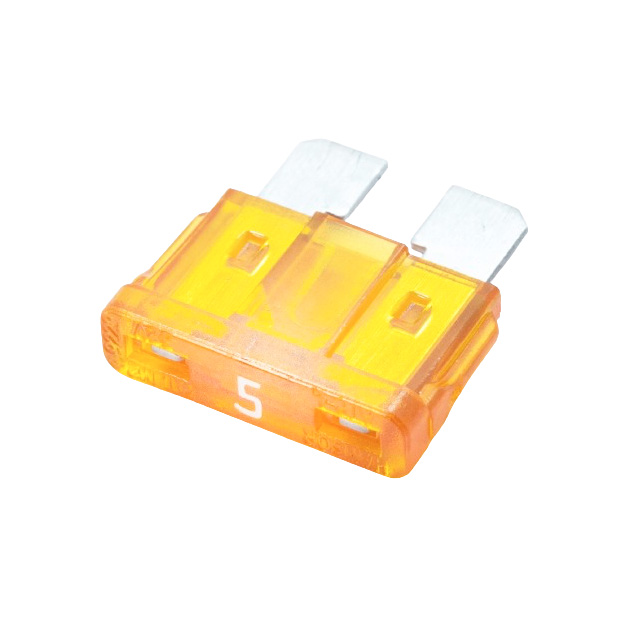

APR-I-5A

Active

OptiFuse

FUSE AUTO 5A 32VDC BLADE ATO/ATC

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 5A 32VDC BLADE ATO/ATC

Technical Specifications

Parameters and characteristics for this part

Specification	APR-I-5A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Tan
Current Rating (Amps)	5 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	19.3 mm
Size / Dimension [x]	0.76 "
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	0.494 in
Size / Dimension [z]	12.54 mm
Voltage Rating - DC	32 V

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Response Time	Color	Approval Agency	Mounting Type	Current Rating (Amps)	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Package / Case	Fuse Type
OptiFuse APR-I-20A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Yellow	ISO SAE	Requires Holder	20 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-35A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Blue Green	ISO SAE	Requires Holder	35 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-7.5A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Brown	ISO SAE	Requires Holder	7.5 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-30A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Green	ISO SAE	Requires Holder	30 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-5A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Tan	ISO SAE	Requires Holder	5 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-25A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Clear	ISO SAE	Requires Holder	25 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-2A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow		ISO SAE	Requires Holder	2 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-4A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Pink	ISO SAE	Requires Holder	4 A	32 V	1 kA	ATC ATO Blade	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.35

General part information

5 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
