TR9CH8330CCPCIMR6B

Active

GlobTek, Inc.

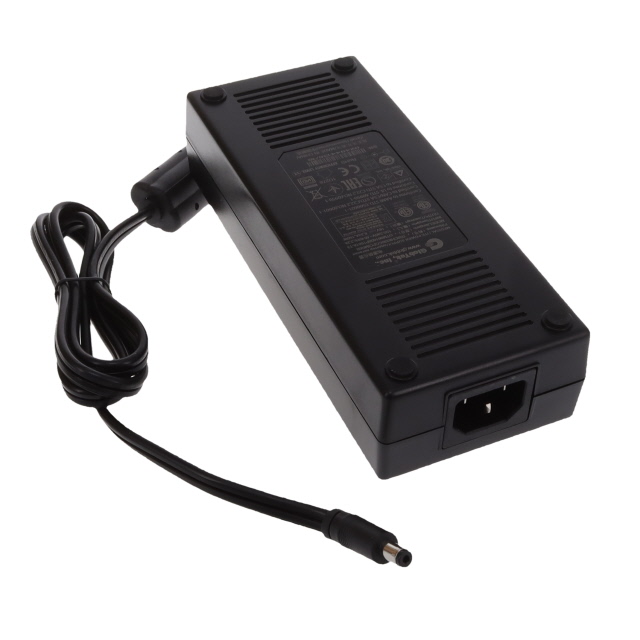

AC/DC DESKTOP ADAPTER 18V 150W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 18V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CH8330CCPCIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	cETLus, EAC, UKRSepro, FCC, S-Mark, RCM, ETL, CE, VCCI, CCC, CB, PSE
Cord Length	1 m
Cord Length	39.4 "
Current - Output (Max) [Max]	8.33 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	150 W
Region Utilized	International
Size / Dimension [x]	6.95 in
Size / Dimension [x]	176.5 mm
Size / Dimension [y]	2.91 "
Size / Dimension [y]	74 mm
Size / Dimension [z]	1.58 "
Size / Dimension [z]	40 mm
Standard Number	62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	18 V

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Input Type	Standard Number	Form	Power (Watts)	Cord Length	Cord Length	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	No Load Power Consumption [Max]	Region Utilized	Applications	Output Connector [diameter]	Output Connector [x]	Output Connector	Voltage - Output	Approval Agency	Input Connector
GlobTek, Inc. TR9CH8330CCPCIMR6B	6.95 in	1.58 "	40 mm	2.91 "	74 mm	176.5 mm	Cord	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Desktop (Class I)	150 W	1 m	39.4 "	8.33 A	90 VAC	264 VAC	Positive Center	-10 °C	40 °C	CoC Tier 2 Level VI	150 mW	International	Household Appliances ITE (Commercial) Medical	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	18 V	CB CCC CE cETLus EAC ETL FCC PSE RCM S-Mark UKRSepro VCCI	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 48.47

General part information

18V 150 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
