8STRYELGPT25

Active

Remington Industries

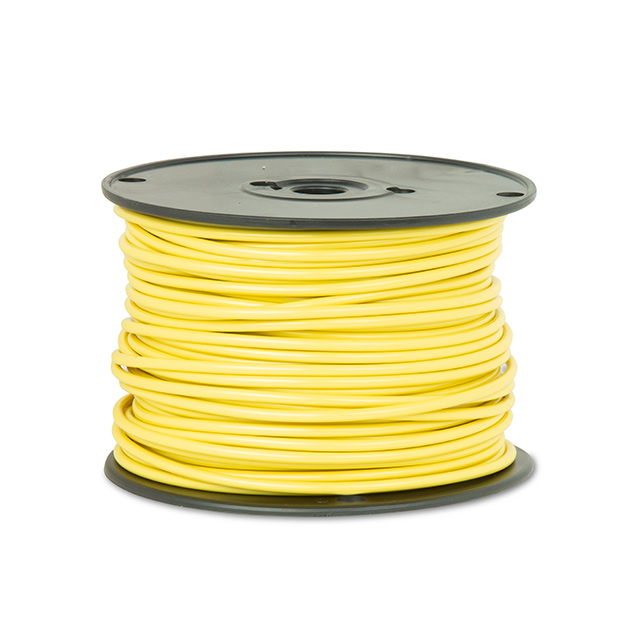

HOOK-UP STRND 8AWG 60V YLW 25'

Search across all available documentation for this part.

Active

Remington Industries

HOOK-UP STRND 8AWG 60V YLW 25'

Technical Specifications

Parameters and characteristics for this part

Specification	8STRYELGPT25

Cable Type	Hook-Up
Conductor Material	Copper, Bare
Features	Chemical Resistant, Oil Resistant, Abrasion Resistant, Solvent Resistant
Jacket (Insulation) Diameter [diameter]	5.46 mm
Jacket (Insulation) Diameter [diameter]	0.215 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Length [x]	25 ft
Length [x]	7.62 m
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Voltage	60 V
Wire Gauge	8 AWG

Part	Voltage	Features	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Conductor Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Material
Remington Industries 8STRBLUGPT25	60 V	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	25 ft	7.62 m	85 °C	-40 °C	Hook-Up	Copper Bare	Blue	5.46 mm	0.215 in	8 AWG	Poly-Vinyl Chloride (PVC)
Remington Industries 8STRBLAGPT25	60 V	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	25 ft	7.62 m	85 °C	-40 °C	Hook-Up	Copper Bare	Black	5.46 mm	0.215 in	8 AWG	Poly-Vinyl Chloride (PVC)
Remington Industries 8STRYELGPT25	60 V	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	25 ft	7.62 m	85 °C	-40 °C	Hook-Up	Copper Bare	Yellow	5.46 mm	0.215 in	8 AWG	Poly-Vinyl Chloride (PVC)
Remington Industries 8STRGREGPT25	60 V	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	25 ft	7.62 m	85 °C	-40 °C	Hook-Up	Copper Bare	Green	5.46 mm	0.215 in	8 AWG	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 24.20

General part information

8 AWG Hook-Up Wire 19/21 Yellow 60V 25.00' (7.62m)

Technical documentation and resources
