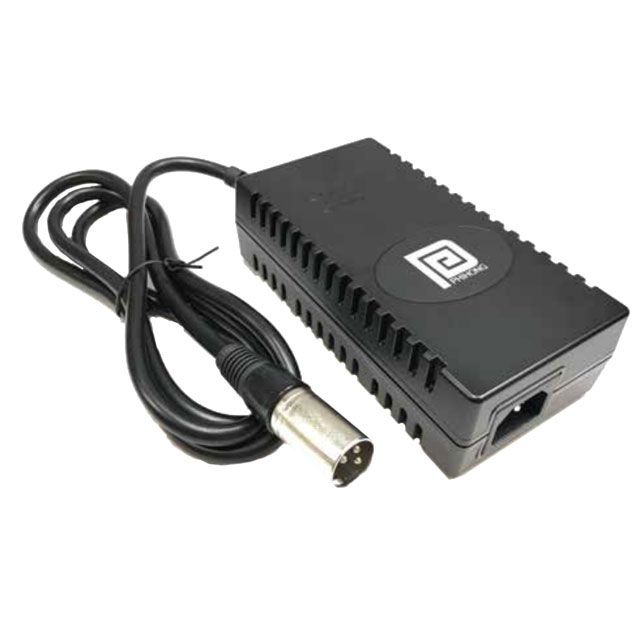

DA84U-240A-R
ObsoletePhihong USA
BATT CHARGER DESKTOP 24V 3.5A
Deep-Dive with AI
Search across all available documentation for this part.
DA84U-240A-R
ObsoletePhihong USA
BATT CHARGER DESKTOP 24V 3.5A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DA84U-240A-R |
|---|---|
| Approval Agency | cULus, FCC, CE |
| Battery Cell Size | 24 V |
| Battery Chemistry | Lead Acid |
| Charge Current - Max [Max] | 3.5 A |
| Charge Time | 12 Hrs |
| Mounting Type | Desktop |
| Number of Cells | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 152 mm |
| Size / Dimension [x] | 5.984 in |
| Size / Dimension [y] | 3.11 " |
| Size / Dimension [y] | 79 mm |
| Size / Dimension [z] | 45 mm |
| Size / Dimension [z] | 1.772 in |
| Termination Style | XLR, 3 Pin |
| Type | Desktop |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 43.60 | |
Description
General part information
DA84U Series
Desktop Battery Charger 24V 3.5A 24V
Documents
Technical documentation and resources
No documents available
