10064-34-1-0500-007-1-TS

Active

CnC Tech, LLC

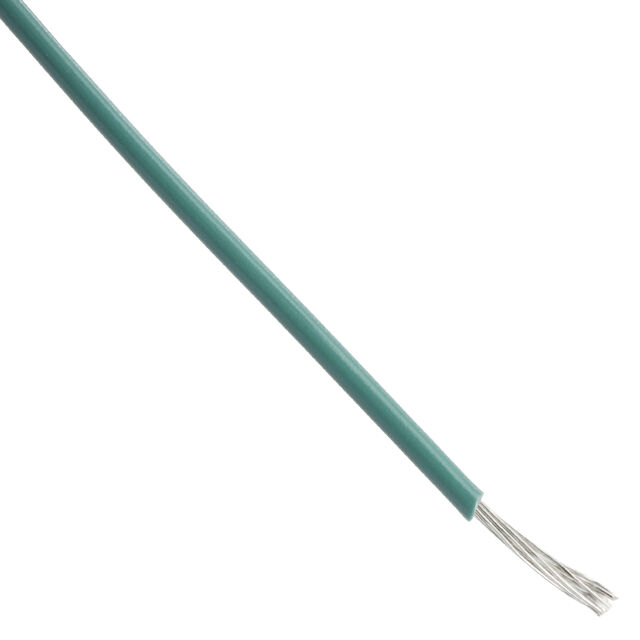

HOOK-UP STRND 34AWG 30V GRN 25'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Prior to DC 22/03 Datasheet

10064-34-1-0500-007-1-TS

Active

CnC Tech, LLC

HOOK-UP STRND 34AWG 30V GRN 25'

Deep-Dive with AI

DocumentsDatasheet Prior to DC 22/03 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10064-34-1-0500-007-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [diameter]	0.0024 in
Jacket (Insulation) Diameter [diameter]	0.31 mm
Jacket (Insulation) Diameter [diameter]	0.012 "
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket (Insulation) Thickness	0.0027 in
Jacket (Insulation) Thickness	0.069 mm
Jacket Color	Green
Length	15.24 m
Length [x]	25 ft, 50 ft, 100 ft
Length [x]	7.62 m, 30.5 m
Operating Temperature	105 C
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-80 °C
Voltage	30 V
Wire Gauge	34 AWG

10064-34 Series

Part	Cable Type	Voltage	Jacket Color	Wire Gauge	Operating Temperature	Length [x]	Length [x]	Length	Conductor Strand [custom]	Conductor Strand [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Spool Size	Spool Size	Length
CnC Tech, LLC 10064-34-1-0500-007-1-TS	Hook-Up	30 V	Green	34 AWG	105 C	25 ft 50 ft 100 ft	7.62 m 30.5 m	15.24 m	7	0.0024 in	-80 °C	105 ░C	0.0027 in	0.069 mm	Copper Tinned	0.31 mm	0.012 "	Fluorinated Ethylene-Propylene (FEP)
CnC Tech, LLC 10064-34-1-0500-002-1-TS	Hook-Up	30 V		34 AWG	105 C	50 ft		15.24 m	7	0.0024 in			0.0027 in	0.069 mm	Copper Tinned	0.31 mm	0.012 "	Fluorinated Ethylene-Propylene (FEP)
CnC Tech, LLC 10064-34-1-0500-004-1-TS	Hook-Up	30 V	Red	34 AWG		25 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m		7	0.0024 in	-80 °C	105 ░C	0.0027 in	0.069 mm	Copper Tinned	0.31 mm	0.012 "	Fluorinated Ethylene-Propylene (FEP)
CnC Tech, LLC 10064-34-1-0500-001-1-TS	Hook-Up	30 V	Black	34 AWG	105 C	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	15.24 m	7	0.0024 in	-80 °C	105 ░C	0.0027 in	0.069 mm	Copper Tinned	0.31 mm	0.012 "	Fluorinated Ethylene-Propylene (FEP)
CnC Tech, LLC 10064-34-1-0500-005-1-TS	Hook-Up	30 V	Blue	34 AWG		25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	15.24 m	7	0.0024 in	-80 °C	105 ░C	0.0027 in	0.069 mm	Copper Tinned	0.31 mm	0.012 "	Fluorinated Ethylene-Propylene (FEP)
CnC Tech, LLC 10064-34-1-0500-012-1-TS	Hook-Up	30 V	Gray	34 AWG					7	0.0024 in	-80 °C	105 ░C	0.006 in	0.15 mm	Copper Tinned	0.5 mm	0.019 in	Fluorinated Ethylene-Propylene (FEP)	500 '	152.4 m	Enter Number of Feet in Order Quantity
CnC Tech, LLC 10064-34-1-0500-010-1-TS	Hook-Up	30 V	Violet	34 AWG		500 '	152.4 m		7	0.0024 in	-80 °C	105 ░C	0.006 in	0.15 mm	Copper Tinned	0.5 mm	0.019 in	Fluorinated Ethylene-Propylene (FEP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 12.40
		1	$ 20.81
		1	$ 6.07
		2	$ 11.85
		2	$ 5.79
		3	$ 5.62
		3	$ 19.42
		5	$ 11.06
		5	$ 18.57
		5	$ 5.42
		7	$ 5.30
		10	$ 10.57
		10	$ 5.16
		10	$ 17.61
		20	$ 10.03
		25	$ 4.84
		25	$ 16.54
		50	$ 9.42
		50	$ 15.69
		50	$ 4.60
		100	$ 4.38
		100	$ 14.94
		100	$ 8.93
		200	$ 8.51
		500	$ 7.96
		500	$ 13.87

Description

General part information

10064-34 Series

34 AWG Hook-Up Wire 7/0.0024" Green 30V 25.00' (7.62m)

Documents

Technical documentation and resources

Datasheet Prior to DC 22/03

Datasheet
