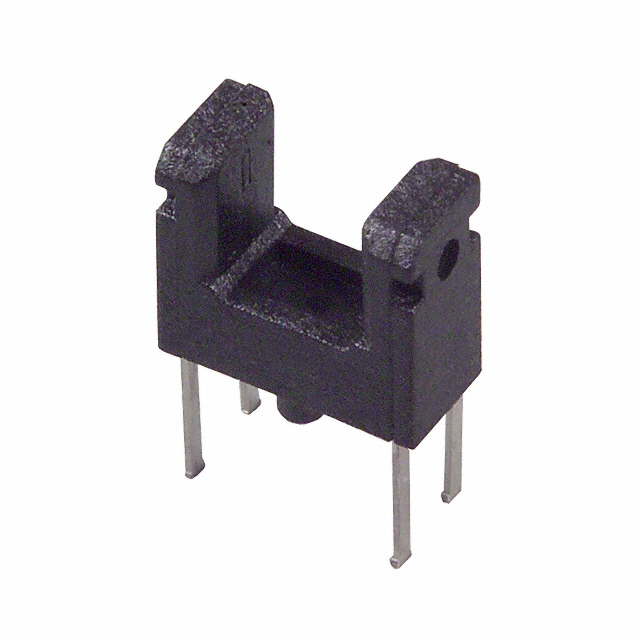

GP1S094HCZ0F

Active

SHARP/Socle Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Search across all available documentation for this part.

Active

SHARP/Socle Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Technical Specifications

Parameters and characteristics for this part

Specification	GP1S094HCZ0F

Current - Collector (Ic) (Max) [Max]	20 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Response Time	50 µs
Sensing Distance	3 mm
Sensing Distance	0.118 in
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V

Part	Mounting Type	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Response Time	Package / Case	Sensing Method	Current - DC Forward (If) (Max)	Current - Collector (Ic) (Max) [Max]	Type	Voltage - Collector Emitter Breakdown (Max) [Max]
SHARP/Socle Technology GP1S094HCZ0F	Through Hole	3 mm	0.118 in	-25 °C	85 °C	Phototransistor	50 µs	PCB Mount	Through-Beam	50 mA	20 mA	Unamplified	35 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.118" (3mm) Phototransistor PCB Mount
