8880N

Active

ebm-papst Inc.

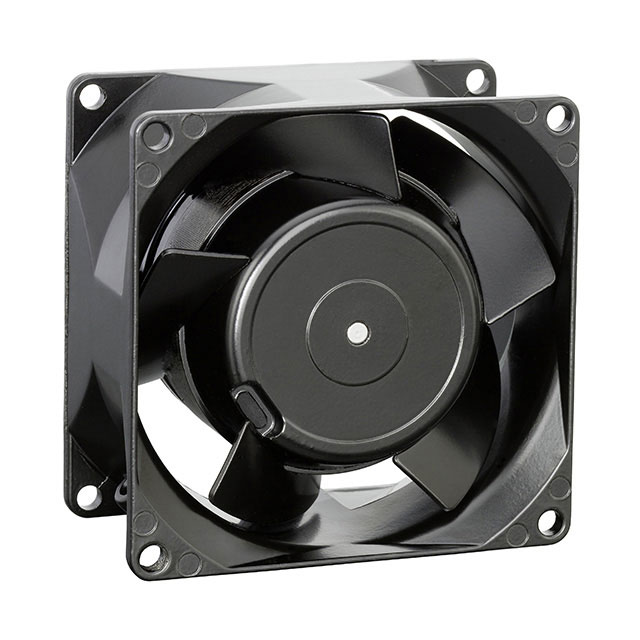

FAN AXIAL 80X38MM 230VAC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 80X38MM 230VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Bearing Type	Material - Frame	Voltage - Rated	Fan Type	Size / Dimension [diameter]	Width [y]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Lifetime @ Temp.	Weight	Weight	Material - Blade	RPM	Approval Agency	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Noise
ebm-papst Inc. 8880TV	Sintec	Metal	230 VAC	Tubeaxial	76 mm	37 mm	2 Wire Leads	80 C	-10 °C	-10 °C	80 °C	9 W	60000 Hrs	370.13 g	0.816 lb	Metal	1650 RPM	CE CSA UL VDE
ebm-papst Inc. 8880N	Sintec	Metal	230 VAC	Tubeaxial		38 mm	2 Wire Leads	80 C	-10 °C	-10 °C	80 °C	9 W	60000 Hrs	499 g	1.1 lbs	Metal	1750 RPM	CE CSA UL VDE	0.496 mł/min	17.7 CFM	80 mm	80 mm	18 dB(A)
ebm-papst Inc. 8880TA	Sintec	Metal	230 VAC	Tubeaxial	76 mm	37 mm	2 Wire Leads	80 C	-10 °C	-10 °C	80 °C	9 W	60000 Hrs	370.13 g	0.816 lb	Metal	1650 RPM	CE CSA UL VDE	0.378 m³/min	13.5 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Square - 80mm L x 80mm H Sintec 17.7 CFM (0.496mł/min) 2 Wire Leads
