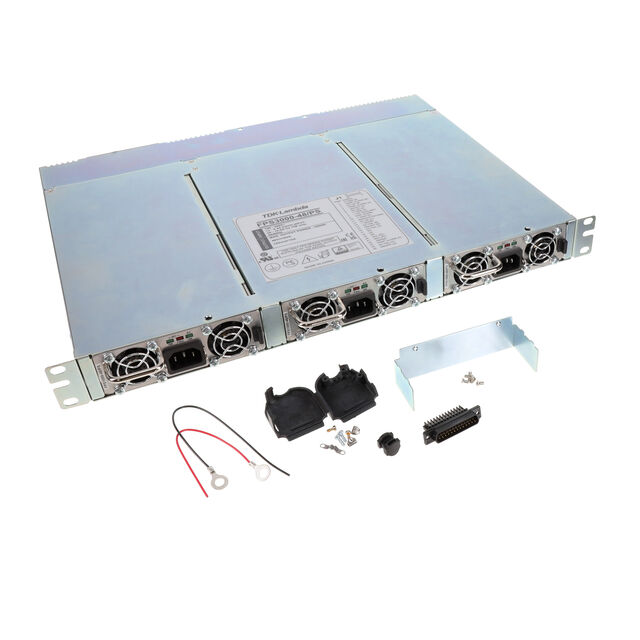

FPS3000-48/PS
ActiveAC/DC FRONT END POWER SUPPLY (PSU), ITE, 1 OUTPUT, ADJUSTABLE, FIXED, 3 KW, 48 V, 63 A
Deep-Dive with AI
Search across all available documentation for this part.
FPS3000-48/PS
ActiveAC/DC FRONT END POWER SUPPLY (PSU), ITE, 1 OUTPUT, ADJUSTABLE, FIXED, 3 KW, 48 V, 63 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FPS3000-48/PS |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 63 A |
| Efficiency | 88 % |
| Features | Load Sharing, Universal Input, Standby Output, I2C Interface, Remote Sense, Hot Swappable, Adjustable Output, PFC |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 3000 W |
| Size / Dimension [x] | 40.9 mm |
| Size / Dimension [x] | 1.61 " |
| Size / Dimension [y] | 5 " |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [z] | 289.6 mm |
| Size / Dimension [z] | 11.4 in |
| Type | Front End |
| Voltage - Input [Max] | 360 VDC, 265 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FPS3000 Series
FPS3000-48/PS is a FPS1000 series AC-DC industrial power supply can be, operated in a hot-swap redundant configuration, or used to provide up to 3,000W of bulk power. Up to three power supplies can be fitted in a variety of 19” 1U high racks, for configuration as a single, dual, or triple output. The FPS supplies have internal ORing diodes and current share for automatic parallel operation. AC fail, DC good, remote on/off and a 12V auxiliary outputs are fitted as standard.
