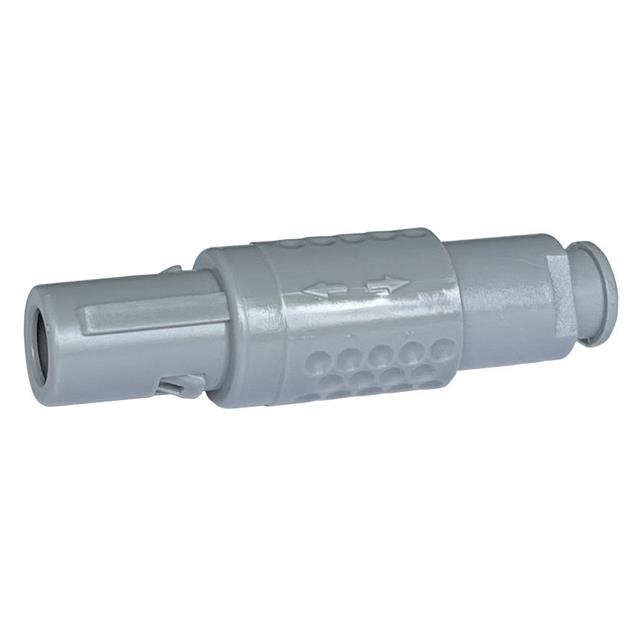

MMI-P1PG08SG52B

Active

Adam Tech

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MMI-P1PG08SG52B

Active

Adam Tech

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMI-P1PG08SG52B

Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	6 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	118 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Plastic
Shell Material	Polycarbonate (PC)
Shielding	Unshielded
Voltage Rating	200 V

MMI-P1PG Series

Part	Shell Material	Voltage Rating	Fastening Type	Shielding	Current Rating (Amps)	Insert Material	Orientation	Color	Primary Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Ingress Protection	Contact Finish - Mating	Features	Mounting Type	Number of Positions
Adam Tech MMI-P1PG03SGG52	Polycarbonate (PC)	300 VDC	Push-Pull	Unshielded	12 A	Polyphenylene Sulfide (PPS)	G	Gray	Plastic	Brass	-55 °C	118 °C	Male Pins Plug	IP50	Gold	Backshell	Free Hanging (In-Line)
Adam Tech MMI-P1PG04SGG52	Polycarbonate (PC)	250 VDC	Push-Pull	Unshielded	10 A	Polyphenylene Sulfide (PPS)	G	Gray	Plastic	Brass	-55 °C	118 °C	Male Pins Plug	IP50	Gold	Backshell	Free Hanging (In-Line)	4
Adam Tech MMI-P1PG06SGG52	Polycarbonate (PC)	200 V	Push-Pull	Unshielded	8 A	Polyphenylene Sulfide (PPS)	G	Gray	Plastic	Brass	-55 °C	118 °C	Male Pins Plug	IP50	Gold	Backshell	Free Hanging (In-Line)	6
Adam Tech MMI-P1PG06SG52B	Polycarbonate (PC)	200 V	Push-Pull	Unshielded	8 A	Polyphenylene Sulfide (PPS)	G	Gray	Plastic	Brass	-55 °C	118 °C	Male Pins Plug	IP50	Gold	Backshell Strain Relief	Free Hanging (In-Line)	6
Adam Tech MMI-P1PG08SG52B	Polycarbonate (PC)	200 V	Push-Pull	Unshielded	6 A	Polyphenylene Sulfide (PPS)	G	Gray	Plastic	Brass	-55 °C	118 °C	Male Pins Plug	IP50	Gold	Backshell Strain Relief	Free Hanging (In-Line)	8
Adam Tech MMI-P1PG07SG52B	Polycarbonate (PC)	200 V	Push-Pull	Unshielded	7 A	Polyphenylene Sulfide (PPS)	G	Gray	Plastic	Brass	-55 °C	118 °C	Male Pins Plug	IP50	Gold	Backshell Strain Relief	Free Hanging (In-Line)	7
Adam Tech MMI-P1PG04SG52B	Polycarbonate (PC)	250 VDC	Push-Pull	Unshielded	10 A	Polyphenylene Sulfide (PPS)	G	Gray	Plastic	Brass	-55 °C	118 °C	Male Pins Plug	IP50	Gold	Backshell Strain Relief	Free Hanging (In-Line)	4
Adam Tech MMI-P1PG08SGG52	Polycarbonate (PC)	200 V	Push-Pull	Unshielded	6 A	Polyphenylene Sulfide (PPS)	G	Gray	Plastic	Brass	-55 °C	118 °C	Male Pins Plug	IP50	Gold	Backshell	Free Hanging (In-Line)	8
Adam Tech MMI-P1PG02SGG52	Polycarbonate (PC)	300 VDC	Push-Pull	Unshielded	20 A	Polyphenylene Sulfide (PPS)	G	Gray	Plastic	Brass	-55 °C	118 °C	Male Pins Plug	IP50	Gold	Backshell	Free Hanging (In-Line)	2
Adam Tech MMI-P1PG07SGG52	Polycarbonate (PC)	200 V	Push-Pull	Unshielded	7 A	Polyphenylene Sulfide (PPS)	G	Gray	Plastic	Brass	-55 °C	118 °C	Male Pins Plug	IP50	Gold	Backshell	Free Hanging (In-Line)	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 7.60
		10	$ 5.83
		30	$ 5.16
		50	$ 4.89
		100	$ 4.88

Description

General part information

MMI-P1PG Series

8 Position Circular Connector Plug, Male Pins Solder Cup
