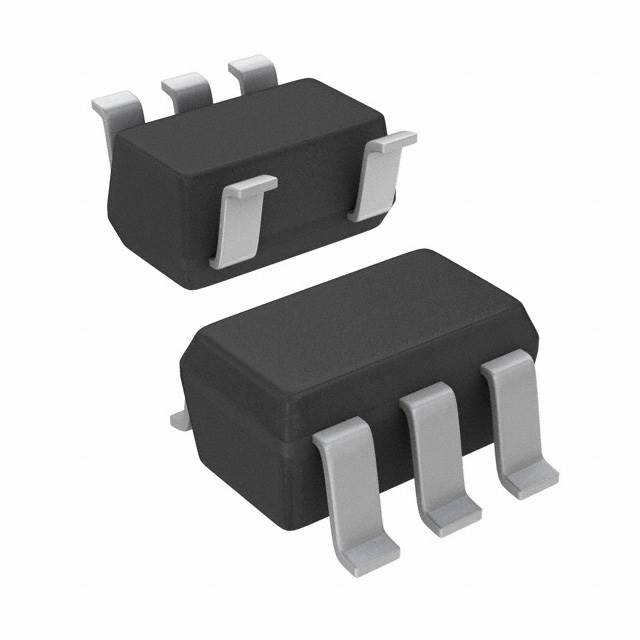

UM3510S
ActiveUnion Semiconductor International Limited
IC REG BUCK ADJ 1A SOT23-6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UM3510S
ActiveUnion Semiconductor International Limited
IC REG BUCK ADJ 1A SOT23-6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UM3510S |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 2.25 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 2.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2 | $ 0.88 | |
| 10 | $ 0.68 | |||
| 100 | $ 0.52 | |||
| 500 | $ 0.40 | |||
Description
General part information
UM3510 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1A SOT-23-6
