NT-42D0-0426

Obsolete

Lighting Science Group Corporation

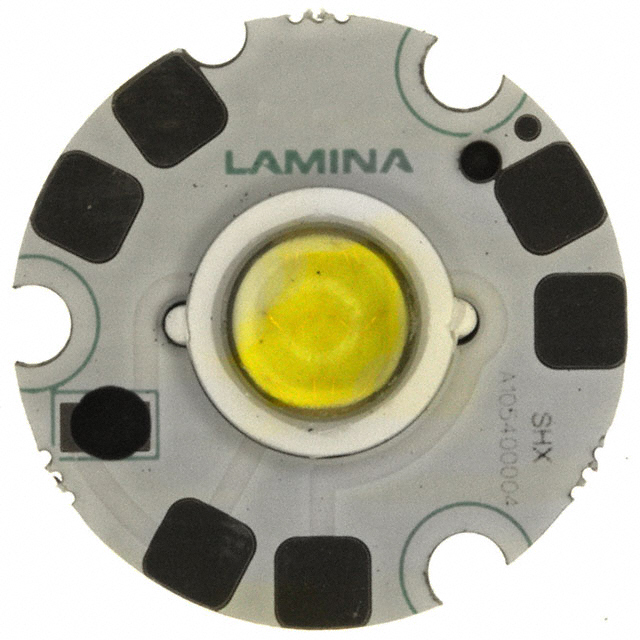

LED MOD ATLAS COOL WH RND 5000K

Search across all available documentation for this part.

Obsolete

Lighting Science Group Corporation

LED MOD ATLAS COOL WH RND 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	NT-42D0-0426

CCT (K)	5000 K
Color	Cool, White
Configuration	Round
CRI (Color Rendering Index)	60
Current - Max [Max]	1.05 A
Height [z]	4.32 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	46 lm/W
Luminous Flux @ Current/Temperature	244 lm
Size / Dimension [diameter]	0.8 in
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	7.6 V

Part	Voltage - Forward (Vf) (Typ)	CCT (K)	Configuration	Size / Dimension [diameter]	Current - Max [Max]	CRI (Color Rendering Index)	Lens Type	Viewing Angle	Luminous Flux @ Current/Temperature	Color	Type	Lumens/Watt @ Current - Test	Height [z]
Lighting Science Group Corporation NT-42D0-0426	7.6 V	5000 K	Round	0.8 in	1.05 A	60	Domed	120 °	244 lm	Cool White	LED Module	46 lm/W	4.32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Atlas™ White, Cool Round
