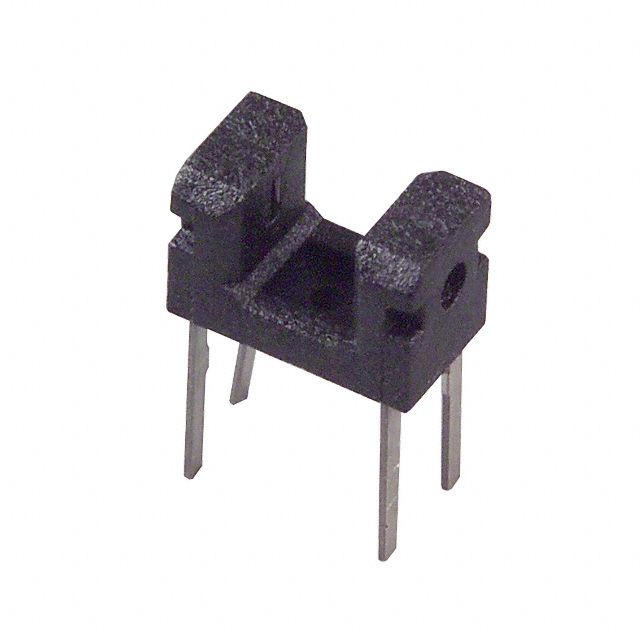

GP1S093HCZ0F

Active

SHARP/Socle Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Search across all available documentation for this part.

Active

SHARP/Socle Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Technical Specifications

Parameters and characteristics for this part

Specification	GP1S093HCZ0F

Current - Collector (Ic) (Max) [Max]	20 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Response Time	50 µs
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V

Part	Sensing Method	Voltage - Collector Emitter Breakdown (Max) [Max]	Response Time	Current - Collector (Ic) (Max) [Max]	Current - DC Forward (If) (Max)	Sensing Distance	Sensing Distance	Output Configuration	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Type
SHARP/Socle Technology GP1S093HCZ0F	Through-Beam	35 V	50 µs	20 mA	50 mA	0.079 in	2 mm	Phototransistor	PCB Mount	-25 °C	85 °C	Through Hole	Unamplified

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.079" (2mm) Phototransistor PCB Mount
