TM20P-88P

Active

Hirose Electric USA, Inc.

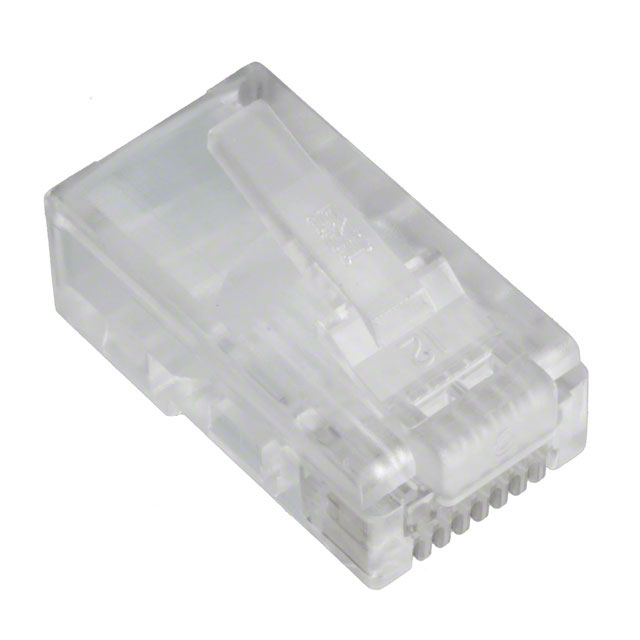

CONN MOD PLUG 8P8C UNSHIELDED

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN MOD PLUG 8P8C UNSHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	TM20P-88P

Cable Type	Round Cable, Solid Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Housing Material	Polycarbonate (PC)
Length	22.45 mm
Length	0.884 "
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Unshielded
Termination	IDC
Voltage Rating	30 VDC

Part	Contact Material	Length	Length	Contact Finish	Housing Material	Termination	Connector Type	Current Rating (Amps)	Shielding	Color	Cable Type	Voltage Rating	Number of Positions/Contacts
Hirose Electric USA, Inc. TM20P-88P	Phosphor Bronze	22.45 mm	0.884 "	Gold	Polycarbonate (PC)	IDC	Plug	0.5 A	Unshielded	Translucent - Clear	Round Cable Solid Wires	30 VDC	8p8c (RJ45 Ethernet)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded IDC
