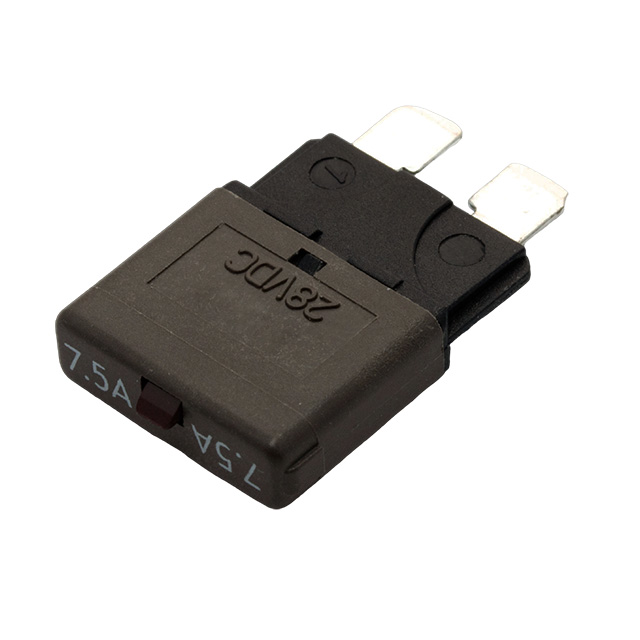

MRCBP4-PL-7.5A
ActiveOptiFuse
REG. FUSE FOOTP CB-TYPE III,7.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MRCBP4-PL-7.5A
ActiveOptiFuse
REG. FUSE FOOTP CB-TYPE III,7.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MRCBP4-PL-7.5A |
|---|---|
| Actuator Type | Push to Reset |
| Approval Agency | SAE J553 |
| Current Rating (Amps) | 7.5 A |
| Illumination | None |
| Number of Poles | 1 |
| Voltage Rating - DC | 28 V |
MRCBP4 Series
| Part | Current Rating (Amps) | Voltage Rating - DC | Illumination | Actuator Type | Approval Agency | Number of Poles |
|---|---|---|---|---|---|---|
OptiFuse | 15 A | 58 VDC | None | Push to Reset | SAE J553 | 1 |
OptiFuse | 20 A | 28 V | None | Push to Reset | SAE J553 | 1 |
OptiFuse | 15 A | 28 V | None | Push to Reset | SAE J553 | 1 |
OptiFuse | 30 A | 28 V | None | Push to Reset | SAE J553 | 1 |
OptiFuse | 5 A | 58 VDC | None | Push to Reset | SAE J553 | 1 |
OptiFuse | 25 A | 58 VDC | None | Push to Reset | SAE J553 | 1 |
OptiFuse | 20 A | 28 V | None | Push to Reset | SAE J553 | 1 |
OptiFuse | 25 A | 28 V | None | Push to Reset | SAE J553 | 1 |
OptiFuse | 10 A | 28 V | None | Push to Reset | SAE J553 | 1 |
OptiFuse | 7.5 A | 28 V | None | Push to Reset | SAE J553 | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.65 | |
| 10 | $ 6.25 | |||
| 25 | $ 5.85 | |||
| 50 | $ 5.45 | |||
| 100 | $ 4.99 | |||
| 250 | $ 4.89 | |||
| 500 | $ 4.74 | |||
| 1000 | $ 4.58 | |||
Description
General part information
MRCBP4 Series
Circuit Breaker 7.5A AC 28 V DC Push to Reset
