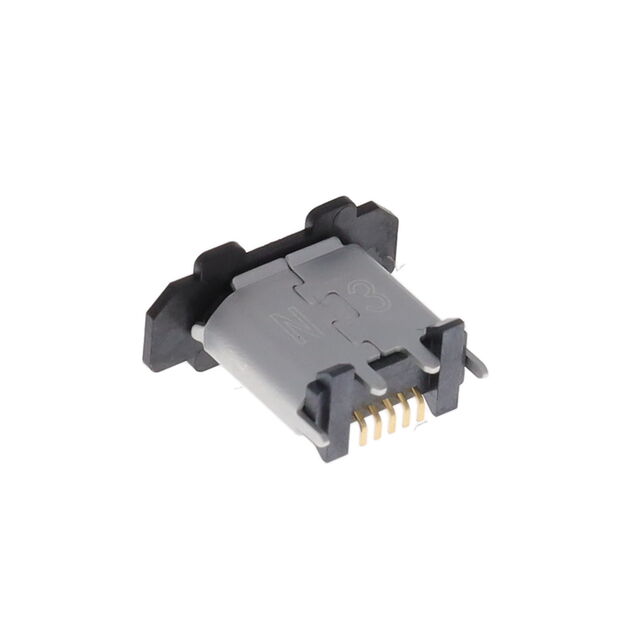

ZX80-B-5P(31)
ActiveHirose Electric USA, Inc.
CONN RCPT USB2.0 MICRO B SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZX80-B-5P(31)
ActiveHirose Electric USA, Inc.
CONN RCPT USB2.0 MICRO B SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZX80-B-5P(31) |
|---|---|
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.8 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.61 | |
| 10 | $ 1.40 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.25 | |||
| Digi-Reel® | 1 | $ 1.61 | ||
| 10 | $ 1.40 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.25 | |||
| Tape & Reel (TR) | 400 | $ 0.75 | ||
Description
General part information
ZX80 Series
USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Through Hole
