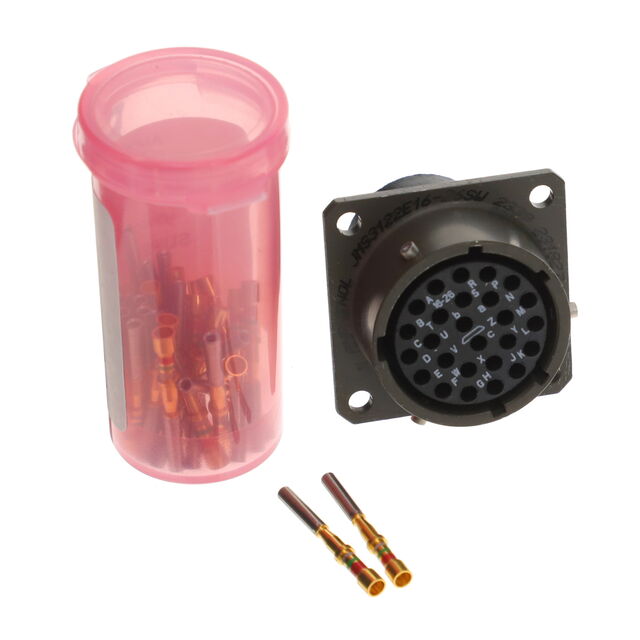

MS3122E16-26SW

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3122E16-26SW

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	26
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	W
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	16
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC
