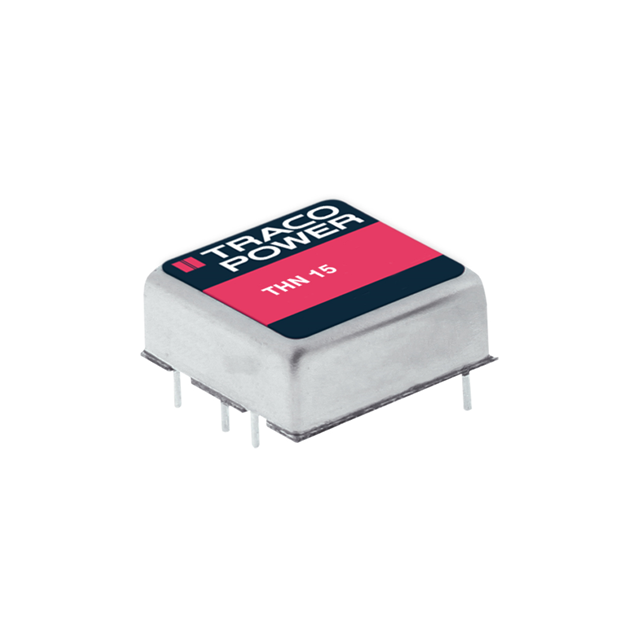

THN 15-2425

Active

Traco Power

DC DC CONVERTER +/-24V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

THN 15-2425

Active

Traco Power

DC DC CONVERTER +/-24V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THN 15-2425

Applications	ITE (Commercial)
Efficiency	90 %
Features	Remote On/Off, OVP, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.39 in
Size / Dimension [z]	9.9 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	24 V
Voltage - Output 2	-24 V

THN 15 Series

Part	Voltage - Input (Max) [Max]	Power (Watts)	Mounting Type	Features	Type	Efficiency	Voltage - Output 1	Voltage - Isolation	Number of Outputs	Current - Output (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)	Approval Agency
Traco Power THN 15-2415N	36 V	15 W	Through Hole	OCP OVP Remote On/Off SCP	Isolated Module	91 %	24 V	1.6 kV	1	625 mA	6-DIP Module	-40 °C	105 C	18 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial)
Traco Power THN 15-4811WIR	75 V	15 W	Through Hole	OVP Remote On/Off SCP UVLO	Isolated Module	89 %	5 V	3000 V	1	3 A	6-DIP Module	-40 °C	90 °C	18 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial) Railway
Traco Power THN 15-2413WIR	36 V	15 W	Through Hole	OVP Remote On/Off SCP UVLO	Isolated Module	89 %	15 V	3000 V	1	1 A	6-DIP Module	-40 °C	90 °C	9 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial) Railway
Traco Power THN 15-2423WIR	36 V	15 W	Through Hole	OVP Remote On/Off SCP UVLO	Isolated Module	89 %	15 V	3000 V	2		6-DIP Module	-40 °C	90 °C	9 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial) Railway	-15 V	500 mA	500 mA
Traco Power THN 15-4821	75 V	15 W	Through Hole	OVP Remote On/Off SCP	Isolated Module	85 %	5 V	1.5 kV	2		6-DIP Module	-40 °C	85 °C	36 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial)	-5 V	1.5 A		1.5 A
Traco Power THN 15-2425	36 V	15 W	Through Hole	OVP Remote On/Off SCP	Isolated Module	90 %	24 V	1.5 kV	2		6-DIP Module	-40 °C	85 °C	18 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial)	-24 V
Traco Power THN 15-4825WI	75 V	15 W	Through Hole	OVP Remote On/Off SCP UVLO	Isolated Module	90 %	24 V	1.6 kV	2		6-DIP Module	-40 °C	85 °C	18 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial)	-24 V				CB cURus
Traco Power THN 15-4812	75 V	16 W	Through Hole	OVP Remote On/Off SCP	Isolated Module	88 %	12 V	1.5 kV	1	1.3 A	6-DIP Module	-40 °C	85 °C	36 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial)
Traco Power THN 15-4812WIR	75 V	16 W	Through Hole	OVP Remote On/Off SCP UVLO	Isolated Module	89 %	12 V	3000 V	1	1.3 A	6-DIP Module	-40 °C	90 °C	18 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial) Railway
Traco Power THN 15-1221N	18 V	15 W	Through Hole	OCP OVP Remote On/Off SCP	Isolated Module	86 %	5 V	1.6 kV	2		6-DIP Module	-40 °C	105 C	9 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial)	-5 V	1.5 A		1.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 44.13
		10	$ 40.56
		25	$ 39.23
		50	$ 38.24
		100	$ 37.28
		250	$ 36.05
		500	$ 32.36

Description

General part information

THN 15 Series

Isolated Module DC DC Converter 2 Output 24V -24V 315mA, 315mA 18V - 36V Input
