3280-7SG-524

Active

Conxall/Switchcraft

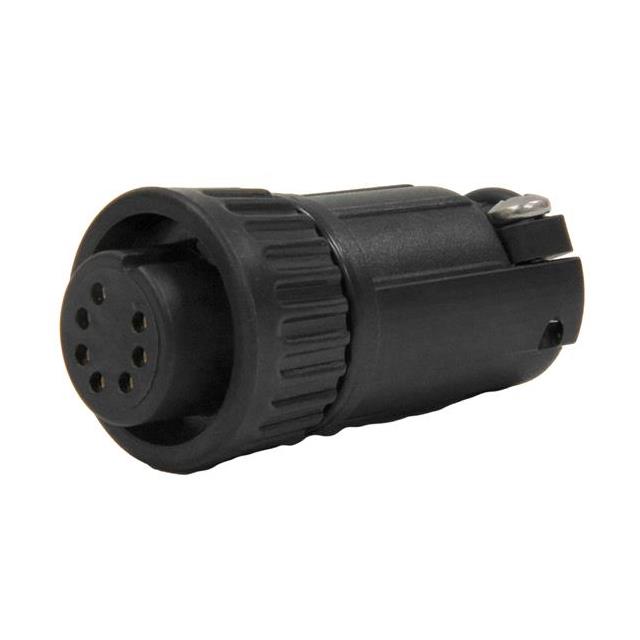

CONN PLUG FMALE 7POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMulti-Con-X Connectors Datasheet

3280-7SG-524

Active

Conxall/Switchcraft

CONN PLUG FMALE 7POS GOLD CRIMP

Deep-Dive with AI

DocumentsMulti-Con-X Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3280-7SG-524

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	6.86 mm
Cable Opening [Max] [diameter]	0.27 in
Cable Opening [Min] [diameter]	0.24 in
Cable Opening [Min] [diameter]	6.1 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

3280-7S Series

Part	Voltage Rating	Ingress Protection	Primary Material	Shielding	Connector Type	Termination	Backshell Material, Plating	Mounting Type	Number of Positions	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Contact Finish - Mating	Features	Current Rating (Amps)	Orientation	Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3280-7SG-324	600 V	Weathertight	Plastic	Unshielded	Female Sockets Plug	Crimp	Nylon Polyamide (PA)	Free Hanging (In-Line)	7	0.24 in	6.86 mm	6.1 mm	0.27 in	Gold	Backshell	5.6 A	Keyed	Black	Brass	-40 °C	115 °C	Bayonet Lock
Conxall/Switchcraft 3280-7SG-318	600 V	Weathertight	Plastic	Unshielded	Female Sockets Plug	Crimp	Nylon Polyamide (PA)	Free Hanging (In-Line)	7					Gold	Backshell	5.6 A	Keyed	Black	Brass	-40 °C	115 °C	Bayonet Lock	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3280-7SG-521	600 V	Weathertight	Plastic	Unshielded	Female Sockets Plug	Crimp	Nylon Polyamide (PA)	Free Hanging (In-Line)	7	0.21 in	5.84 mm	5.33 mm	0.23 in	Gold	Backshell Cable Clamp	5.6 A	Keyed	Black	Brass	-40 °C	115 °C	Bayonet Lock
Conxall/Switchcraft 3280-7SG-524	600 V	Weathertight	Plastic	Unshielded	Female Sockets Plug	Crimp	Nylon Polyamide (PA)	Free Hanging (In-Line)	7	0.24 in	6.86 mm	6.1 mm	0.27 in	Gold	Backshell Cable Clamp	5.6 A	Keyed	Black	Brass	-40 °C	115 °C	Bayonet Lock
Conxall/Switchcraft 3280-7SG-330	600 V	Weathertight	Plastic	Unshielded	Female Sockets Plug	Crimp	Nylon Polyamide (PA)	Free Hanging (In-Line)	7	0.3 in		7.62 mm	0.32 in	Gold	Backshell	5.6 A	Keyed	Black	Brass	-40 °C	115 °C	Bayonet Lock					8.13 mm
Conxall/Switchcraft 3280-7SG-518	600 V	Weathertight	Plastic	Unshielded	Female Sockets Plug	Crimp	Nylon Polyamide (PA)	Free Hanging (In-Line)	7					Gold	Backshell Cable Clamp	5.6 A	Keyed	Black	Brass	-40 °C	115 °C	Bayonet Lock	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3280-7SG-315	600 V	Weathertight	Plastic	Unshielded	Female Sockets Plug	Crimp	Nylon Polyamide (PA)	Free Hanging (In-Line)	7					Gold	Backshell	5.6 A	Keyed	Black	Brass	-40 °C	115 °C	Bayonet Lock						0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3280-7SG-321	600 V	Weathertight	Plastic	Unshielded	Female Sockets Plug	Crimp	Nylon Polyamide (PA)	Free Hanging (In-Line)	7	0.21 in	5.84 mm	5.33 mm	0.23 in	Gold	Backshell	5.6 A	Keyed	Black	Brass	-40 °C	115 °C	Bayonet Lock
Conxall/Switchcraft 3280-7SG-3DC	600 V	Weathertight	Plastic	Unshielded	Female Sockets Plug	Crimp	Nylon Polyamide (PA)	Free Hanging (In-Line)	7					Gold	Backshell	5.6 A	Keyed	Black	Brass	-40 °C	115 °C	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.37

Description

General part information

3280-7S Series

7 Position Circular Connector Plug, Female Sockets Crimp
