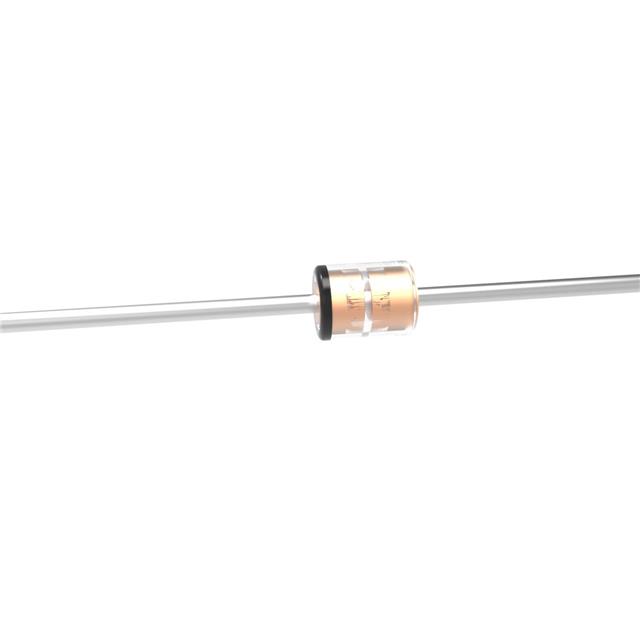

1N4734A-TP
ObsoleteMicro Commercial Components
DIODE ZENER 5.6V 1W DO41G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1N4734A-TP
ObsoleteMicro Commercial Components
DIODE ZENER 5.6V 1W DO41G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N4734A-TP |
|---|---|
| Current - Reverse Leakage @ Vr | 10 µA |
| Impedance (Max) (Zzt) [Max] | 5 Ohms |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | DO-204AL, DO-41, Axial |
| Power - Max [Max] | 1 W |
| Supplier Device Package | DO-41G |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1N4734 Series
Zener Diode 5.6 V 1 W ±5% Through Hole DO-41G
