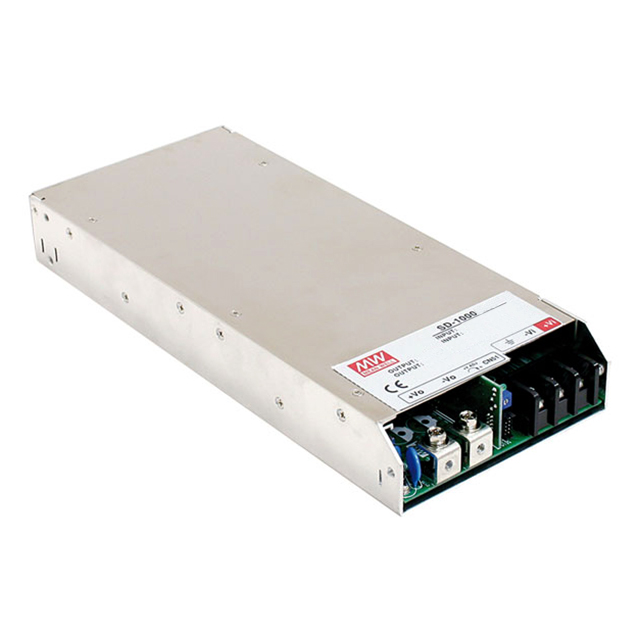

SD-1000L-24

Active

MEAN WELL USA Inc.

DC/DC CONVERTER 24V 960W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

DC/DC CONVERTER 24V 960W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Efficiency	Voltage - Isolation	Approval Agency
MEAN WELL USA Inc. SD-1000L-12	Chassis Mount	Enclosed	1.61 "	127 mm	11.61 "	295 mm	5 "	41 mm	60 A	60 °C	-20 °C	12 V	19 V	720 W	72 V	1	ITE (Commercial)	84 %	2000 V	CB CE
MEAN WELL USA Inc. SD-1000H-12	Chassis Mount	Enclosed	1.61 "	127 mm	11.61 "	295 mm	5 "	41 mm	60 A	60 °C	-20 °C	12 V	72 V	720 W	144 V	1	ITE (Commercial)	85 %	2000 V	CB CE
MEAN WELL USA Inc. SD-1000L-24	Chassis Mount	Enclosed	1.61 "	127 mm	11.61 "	295 mm	5 "	41 mm	40 A	60 °C	-20 °C	24 V	19 V	960 W	72 V	1	ITE (Commercial)	88 %	2000 V	CB CE
MEAN WELL USA Inc. SD-1000H-24	Chassis Mount	Enclosed	1.61 "	127 mm	11.61 "	295 mm	5 "	41 mm	40 A	60 °C	-20 °C	24 V	72 V	960 W	144 V	1	ITE (Commercial)	89 %	2000 V	CB CE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed DC DC Converter 1 Output 24V 40A 72V Input
