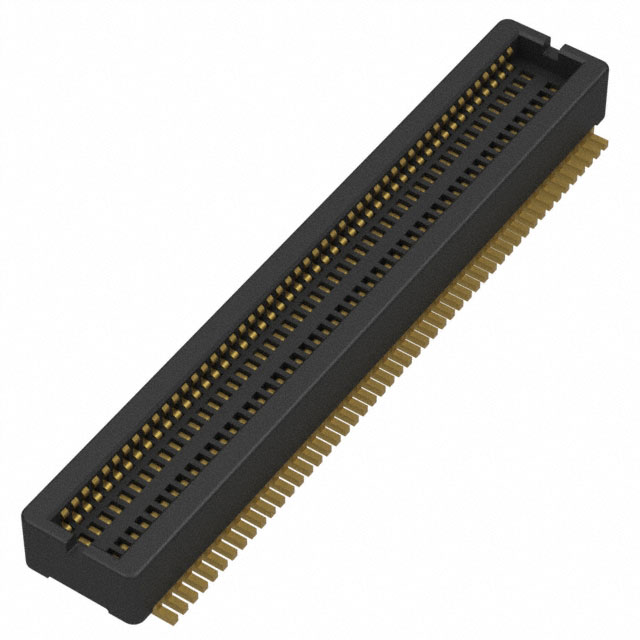

AC01S100WA2R2800

Active

JAE Electronics

CONN RCPT 100POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AC01S100WA2R2800

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.108 in
Height Above Board	2.75 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions	Contact Finish	Mounting Type	Mated Stacking Heights	Height Above Board	Height Above Board	Connector Type
JAE Electronics AC01S100WA1R500	0.5 mm	0.02 in	2	100	Gold	Surface Mount	2.5 mm	0.089 in	2.26 mm	Receptacle Outer Shroud Contacts
JAE Electronics AC01S100WA2R2800	0.5 mm	0.02 in	2	100	Gold	Surface Mount	3 mm	0.108 in	2.75 mm	Receptacle Outer Shroud Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5600	$ 4.91

General part information

100 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
