5014112M071A(R)

Active

GlobTek, Inc.

CORD 17AWG AS3112-IEC320 6.56'

Search across all available documentation for this part.

Active

GlobTek, Inc.

CORD 17AWG AS3112-IEC320 6.56'

Technical Specifications

Parameters and characteristics for this part

Specification	5014112M071A(R)

1st Connector	AS3112
2nd Connector	IEC 320-C17
Approval Agency Marking	SAA, VDE, ENEC, C-TICK
Approved Countries	Europe, Australia, Germany, New Zealand
Color	Black
Cord Type	H05VV-F
Current Rating (Amps)	10 A
Length [x]	2 m
Length [x]	6.56 ft
Number of Conductors	2
Operating Temperature	70 °C
Shielding	Unshielded
Style	Male Pins, Female Sockets
Voltage Rating	250 VDC
Wire Gauge	17 AWG

Part	Approval Agency Marking	Number of Conductors	Wire Gauge	2nd Connector	Operating Temperature	Voltage Rating	Cord Type	Color	Shielding	Length [x]	Length [x]	1st Connector	Style	Current Rating (Amps)	Approved Countries	Approved Countries [custom]
GlobTek, Inc. 5014112M071A(R)	C-TICK ENEC SAA VDE	2	17 AWG	IEC 320-C17	70 °C	250 VDC	H05VV-F	Black	Unshielded	2 m	6.56 ft	AS3112	Female Sockets Male Pins	10 A	Australia Europe Germany New Zealand
GlobTek, Inc. 5014112M703A(R)	SAA	2	18 AWG	IEC 320-C7	167 °F	250 VAC		Black	Unshielded	2 m	6.56 ft	AS3112	Female Sockets Male Pins	2.5 A		Australia New Zealand

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

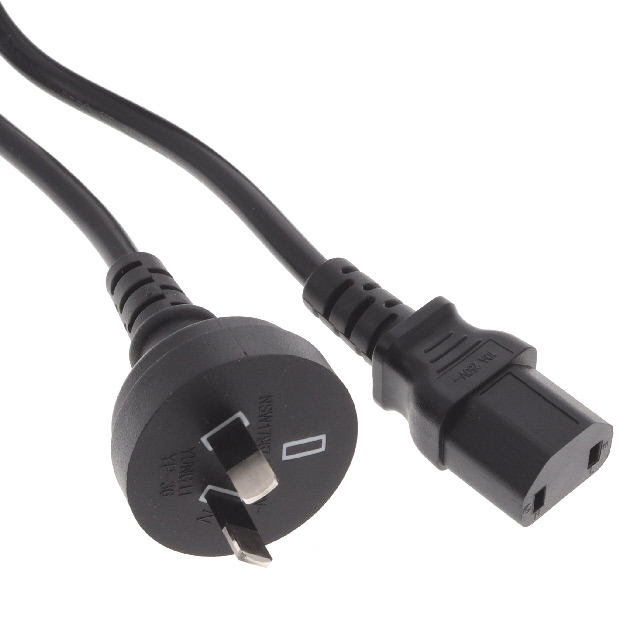

6.56' (2.00m) Power Cord Black AS3112 To IEC 320-C17 H05VV-F

Technical documentation and resources

No documents available
