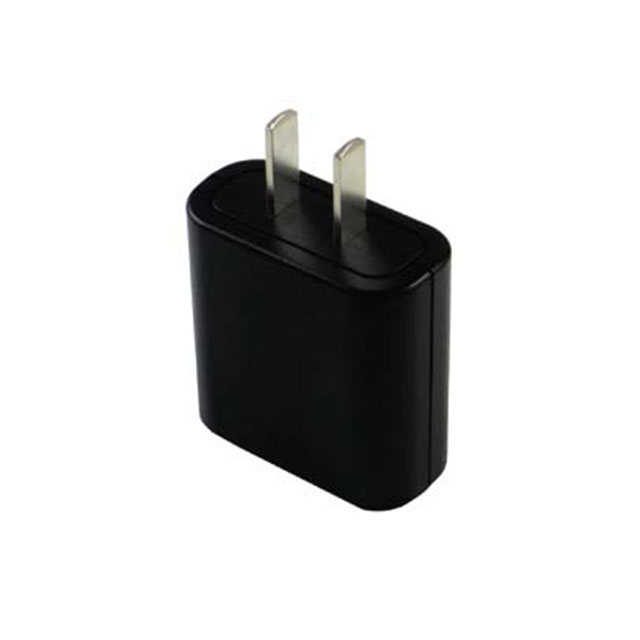

PSA05C-050QL6

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 5W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	PSA05C-050QL6

Applications	ITE (Commercial)
Approval Agency	cULus
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	GB 1002
Input Type	Fixed Blade
No Load Power Consumption [Max]	30 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	5 W
Region Utilized	China
Size / Dimension [x]	0.83 "
Size / Dimension [x]	21 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.69 in
Size / Dimension [z]	42 mm
Size / Dimension [z]	1.65 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	80.36 g
Weight	2.82 oz

Part	Input Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Region Utilized	Weight	Weight	Input Type	Efficiency	Applications	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Form	No Load Power Consumption [Max]	Power (Watts)	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]
Phihong USA PSA05C-050QL6	GB 1002	0.83 "	43 mm	1.69 in	42 mm	21 mm	1.65 "	China	80.36 g	2.82 oz	Fixed Blade	Level VI	ITE (Commercial)	cULus	40 °C	0 °C	Wall Mount (Class II)	30 mW	5 W	5 V	90 VAC	264 VAC	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.86

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
