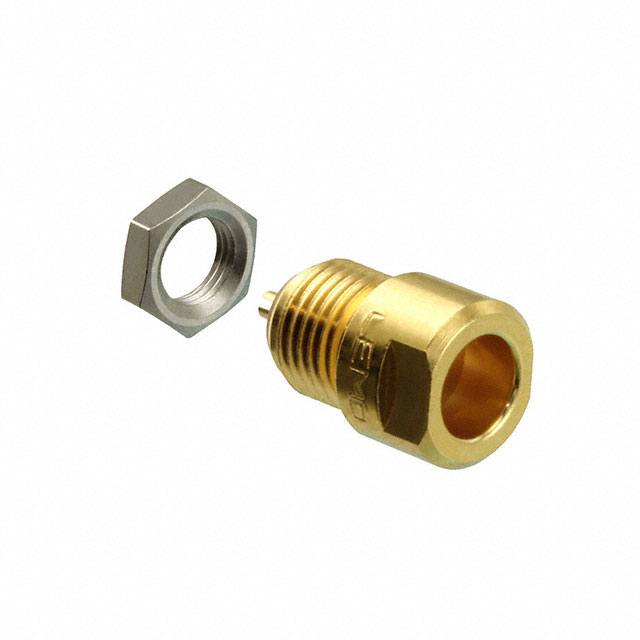

ERA.01.250.DLL
ActiveLEMO
CONN MINI COAX RCPT STR 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
ERA.01.250.DLL
ActiveLEMO
CONN MINI COAX RCPT STR 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ERA.01.250.DLL |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Bronze |
| Center Contact Plating | Gold |
| Connector Style | Miniature Coaxial |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder Cup |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Push-Pull |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | 1 Nut, 1 Connector |
| Ingress Protection | IP50 |
| Mating Cycles | 1000 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 230 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.81 | |
| 10 | $ 9.58 | |||
| 25 | $ 9.21 | |||
| 50 | $ 8.84 | |||
| 100 | $ 8.65 | |||
Description
General part information
ERA.01 Series
Miniature Coaxial Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
