ED951/5

Active

On Shore Technology Inc.

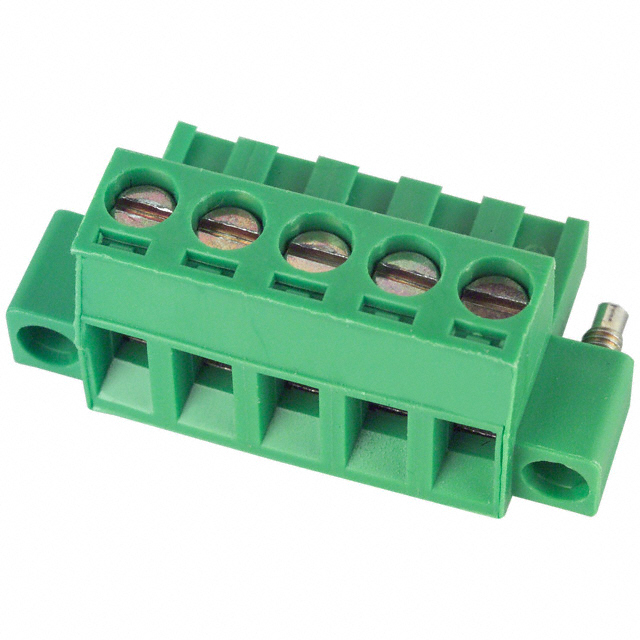

TERM BLOCK PLUG 5POS STR 5MM

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLOCK PLUG 5POS STR 5MM

Technical Specifications

Parameters and characteristics for this part

Specification	ED951/5

Color	Green
Contact Material	Copper
Features	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591 in
Insulation Height	15 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	5
Screw Size	M3
Termination Style	Screw
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm²	2.5 mm²
Wire Strip Length	6 mm

Part	Screw Size	Wire Strip Length	Housing Material	Termination Style	Voltage - UL	Positions Per Level	Features	Wire Gauge or Range - mm²	Material Flammability Rating	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Color	Torque - Screw	Torque - Screw	Contact Material	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Number of Positions	Wire Gauge or Range - mm˛
On Shore Technology Inc. ED951/5	M3	6 mm	Polyamide (PA) Nylon	Screw	300 V	5	Mating Flange Retention Latches (Non-Wire Side)	2.5 mm²	UL94 V-0	5 mm	0.197 in	0.591 in	15 mm	Free Hanging (In-Line)	-30 ░C	105 ░C	1	Green	4.4 Lb-In	0.5 Nm	Copper	12 AWG	22 AWG	Plug Female Sockets
On Shore Technology Inc. ED951/2	M3	6 mm	Polyamide (PA) Nylon	Screw	300 V	2	Mating Flange Retention Latches (Non-Wire Side)		UL94 V-0	5 mm	0.197 in	0.591 in	15 mm	Free Hanging (In-Line)	-30 ░C	105 ░C	1	Green	4.4 Lb-In	0.5 Nm	Copper	12 AWG	22 AWG	Plug Female Sockets	2	2.5 mm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 3.72

General part information

5 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
