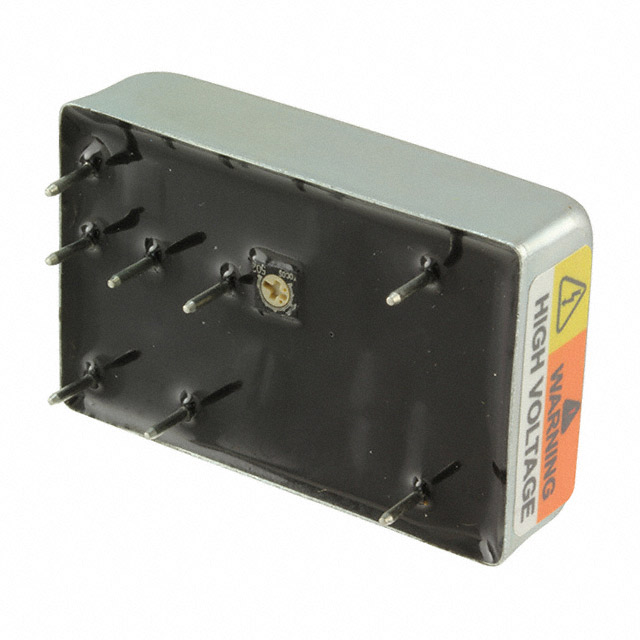

CA20P-5

Active

XP POWER

DC DC CONVERTER 2000V 1W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 2000V 1W

Technical Specifications

Parameters and characteristics for this part

Specification	CA20P-5

Applications	ITE (Commercial)
Current - Output (Max) [Max]	500 µA
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Package / Case	8-DIP Module
Size / Dimension [x]	44.5 mm
Size / Dimension [x]	1.75 "
Size / Dimension [y]	1.1 in
Size / Dimension [y]	27.9 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Standard Number	62368-1
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	5.25 V
Voltage - Input (Min) [Min]	4.75 V
Voltage - Output 1	2000 V

Part	Features	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Type	Current - Output (Max) [Max]	Voltage - Output 1	Applications	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Standard Number	Package / Case
XP POWER CA20P-5	SCP	5.25 V	1	4.75 V	Through Hole	High Voltage - Non-Isolated Module	500 µA	2000 V	ITE (Commercial)	-10 °C	50 °C	44.5 mm	1.1 in	1.75 "	0.5 in	12.7 mm	27.9 mm	62368-1	8-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High Voltage - Non-Isolated Module DC DC Converter 1 Output 2000V 500µA 4.75V - 5.25V Input
