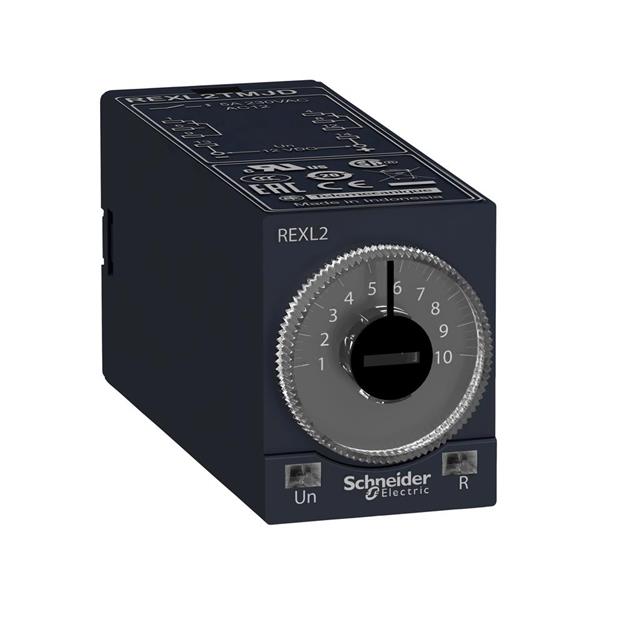

REXL2TMP7

Active

SQUARE D BY SCHNEIDER ELECTRIC

TIMER 250VAC 5A REXL OPTIONS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

TIMER 250VAC 5A REXL OPTIONS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Delay Time [Max]	Delay Time [Min]	Timing Initiate Method	Mounting Type	Contact Rating @ Voltage	Timing Adjustment Method	Voltage - Supply	Function	Termination Style	Relay Type
SQUARE D BY SCHNEIDER ELECTRIC REXL2TMP7	DPDT (2 Form C)	100 Hrs	0.1 Sec	Input Voltage	Socketable	5 A 250 VAC	Hand Dial	230 VAC	On-Delay	Plug In	Mechanical Relay
SQUARE D BY SCHNEIDER ELECTRIC REXL2TMB7	DPDT (2 Form C)	100 Hrs	0.1 Sec	Input Voltage	Socketable	5 A 250 VAC	Hand Dial	24 VAC	On-Delay	Plug In	Mechanical Relay
SQUARE D BY SCHNEIDER ELECTRIC REXL2TMJD	DPDT (2 Form C)	100 Hrs	0.1 Sec	Input Voltage	Socketable	5 A 250 VAC	Hand Dial	12 VDC	On-Delay	Plug In	Mechanical Relay

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

On-Delay Time Delay Relay DPDT (2 Form C) 0.1 Sec ~ 100 Hrs Delay 5A @ 250VAC/DC Socketable
