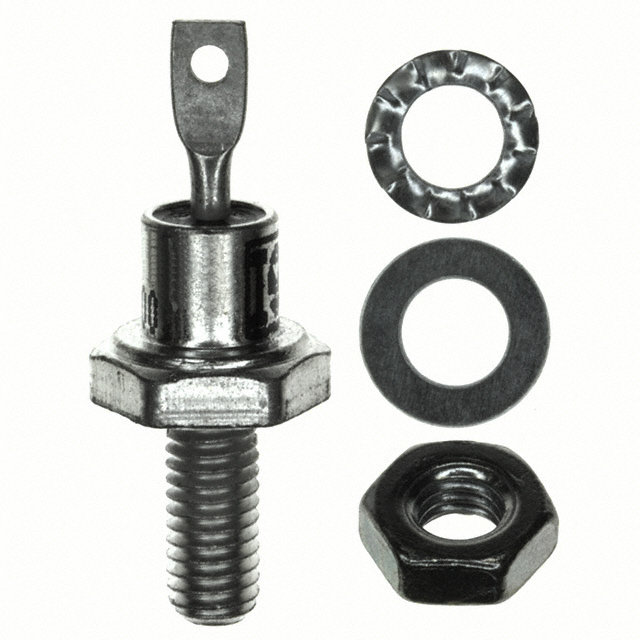

VS-16FR100

Active

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 1KV 16A DO203AA

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 1KV 16A DO203AA

Technical Specifications

Parameters and characteristics for this part

Specification	VS-16FR100

Current - Average Rectified (Io)	16 A
Current - Reverse Leakage @ Vr	12 mA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-203AA, DO-4
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-203AA
Supplier Device Package	DO-4
Technology	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If	1.23 V

Part	Supplier Device Package	Supplier Device Package	Package / Case	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Speed	Speed	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr
Vishay General Semiconductor - Diodes Division VS-16FR100	DO-203AA	DO-4	DO-203AA DO-4 Stud	16 A	1.23 V	Chassis Stud Mount	Standard Recovery >500ns	200 mA	Reverse Polarity Standard	175 ░C	-65 C	1000 V	12 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1000 V 16A Chassis, Stud Mount DO-203AA (DO-4)
