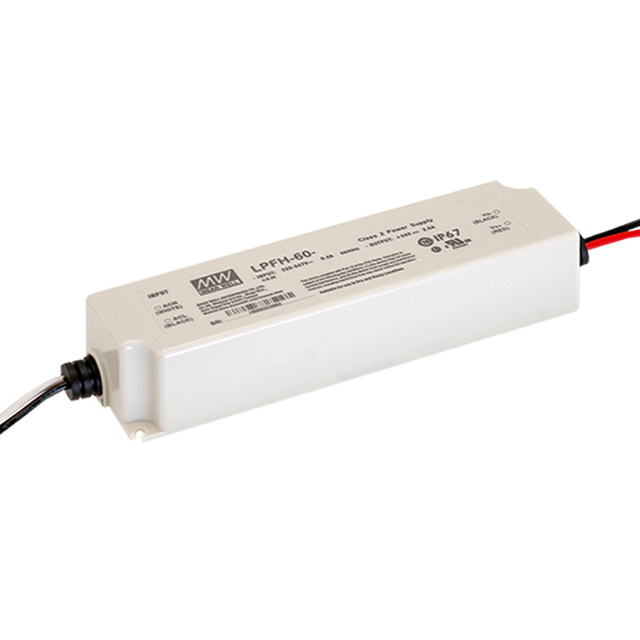

LPFH-60-48

Obsolete

MEAN WELL USA Inc.

LED DVR CCCV ACDC 28.8-48V 1.25A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LPFH-60-48

Obsolete

MEAN WELL USA Inc.

LED DVR CCCV ACDC 28.8-48V 1.25A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LPFH-60-48

Current - Output (Max) [Max]	1.25 A
Efficiency	90 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	60 W
Ratings	IP67
Size / Dimension [x]	6.4 in
Size / Dimension [x]	162.5 mm
Size / Dimension [y]	1.69 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	32 mm
Size / Dimension [z]	1.26 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	400 VAC
Voltage - Input (Min) [Min]	200 VAC
Voltage - Isolation	3000 V
Voltage - Output [Max]	48 V
Voltage - Output [Min]	28.8 V

LPFH-60 Series

Part	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Topology	Features	Mounting Type	Number of Outputs	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Ratings	Voltage - Output [Min]	Voltage - Output [Max]	Current - Output (Max) [Max]	Type	Voltage - Isolation	Termination Style	Dimming
MEAN WELL USA Inc. LPFH-60-42	90 %	90 °C	-40 °C	200 VAC	400 VAC	AC DC Converter	OCP OTP OVP SCP	Chassis Mount	1	60 W	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	IP67	25.2 V	42 V	1.43 A	Constant Current Voltage	3000 V	Wire Leads
MEAN WELL USA Inc. LPFH-60-48	90 %	90 °C	-40 °C	200 VAC	400 VAC	AC DC Converter	OCP OTP OVP SCP	Chassis Mount	1	60 W	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	IP67	28.8 V	48 V	1.25 A	Constant Current Voltage	3000 V	Wire Leads
MEAN WELL USA Inc. LPFH-60-36	90 %	90 °C	-40 °C	200 VAC	400 VAC	AC DC Converter	OCP OTP OVP SCP	Chassis Mount	1	60 W	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	IP67	21.6 V	36 V	1.67 A	Constant Current Voltage	3000 V	Wire Leads
MEAN WELL USA Inc. LPFH-60D-42	90 %	90 °C	-40 °C	200 VAC	400 VAC	AC DC Converter	OTP OVP SCP	Chassis Mount	1	60 W	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	IP67	25.2 V	42 V	1.43 A	Constant Current	3000 V	Wire Leads	Analog PWM
MEAN WELL USA Inc. LPFH-60-15	87 %	90 °C	-40 °C	200 VAC	400 VAC	AC DC Converter	OCP OTP OVP SCP	Chassis Mount	1	60 W	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	IP67			2.5 A	Constant Current Voltage	3000 V	Wire Leads
MEAN WELL USA Inc. LPFH-60D-54	90 %	90 °C	-40 °C	200 VAC	400 VAC	AC DC Converter	OTP OVP SCP	Chassis Mount	1	60 W	32 mm	1.69 in	43 mm	6.4 in	162.5 mm	1.26 in	IP67	32.4 V	54 V	1.12 A	Constant Current	3000 V	Wire Leads	Analog PWM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LPFH-60 Series

1.25A 28.8 ~ 48V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
