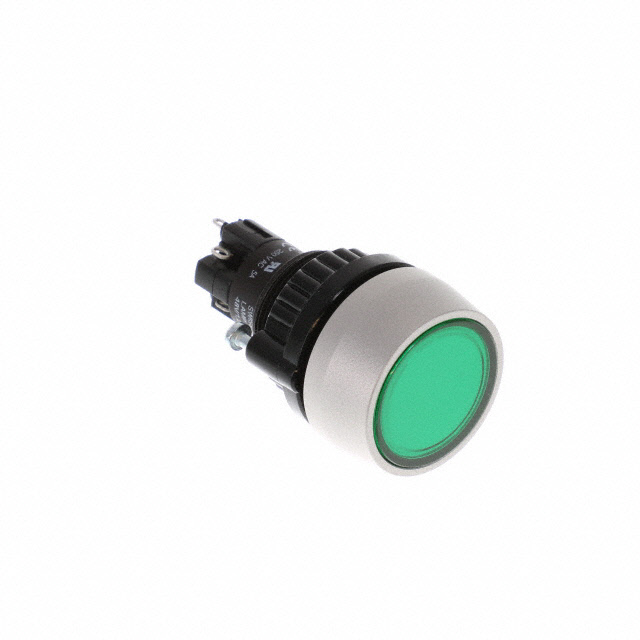

K14-131.121081

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

K14-131.121081

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K14-131.121081

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPST-NO/NC
Color - Actuator/Cap	Green
Current Rating (Amps)	5 A
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	250 V
Voltage Rating - DC	250 V

SERIES 14 Series

EAO

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Illumination Voltage (Nominal)	Mounting Type	Color - Actuator/Cap	Circuit	Ingress Protection	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Illumination Type, Color	Switch Function	Voltage Rating - AC	Termination Style	Actuator Type	Electrical Life	Type	Actuator Marking	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Panel Cutout Shape	Ratings	Lens Color	Lamp Color	Lens Transparency	Current	Termination Style	Termination Style
EAO K14-131.221102	55 °C	-25 °C	2000000 Cycles	28 VAC/DC	Panel Mount Front	Red	DPST-NO/NC	IP67 - Dust Tight Waterproof	2 A 5 A	30.5 mm	24 V	LED Red	Off-Mom On-Mom	250 V	Solder Lug	Button Flush Round	50000 Cycles	Illuminated Standard
EAO K14-131.121081	55 °C	-25 °C	2000000 Cycles	24 VAC/DC	Panel Mount Front	Green	DPST-NO/NC	IP67 - Dust Tight Waterproof	5 A	22.3 mm	250 V	Green LED	Off-Mom On-Mom	250 V	Solder Lug	Button Flush Round		Illuminated Standard	No Marking
EAO K14-040.120032								IP67							Solder Lug			LED		28 V	0.88 in	22.3 mm	Round	AC/DC	Green	Green	Clear	7 mA
EAO K14-040.120022								IP67							Solder Lug			LED		28 V	0.88 in	22.3 mm	Round	AC/DC	Yellow	Yellow	Clear	14 mA
EAO K14-131.121031	55 °C	-25 °C	2000000 Cycles	24 VAC/DC	Panel Mount Front	Green	DPST-NO/NC	IP67 - Dust Tight Waterproof	5 A	22.3 mm	250 V	Green LED	Off-Mom On-Mom	250 V	Solder Lug	Button Round		Illuminated Standard	No Marking
EAO K14-131.121061	55 °C	-25 °C	2000000 Cycles	24 VAC/DC	Panel Mount Front	Blue	DPST-NO/NC	IP67 - Dust Tight Waterproof	5 A	22.3 mm	250 V	Blue LED	Off-Mom On-Mom	250 V	Solder Lug	Button Flush Round		Illuminated Standard	No Marking
EAO K14-131.221091	55 °C	-25 °C	2000000 Cycles	24 VAC/DC	Panel Mount Front	Clear	DPST-NO/NC	IP67 - Dust Tight Waterproof	2 A 5 A	30.5 mm	24 V	Clear LED	Off-Mom On-Mom	250 V	Solder Lug	Button Flush Round	50000 Cycles	Illuminated Standard
EAO K14-131.221081	55 °C	-25 °C	2000000 Cycles	24 VAC/DC	Panel Mount Front	Green	DPST-NO/NC	IP67 - Dust Tight Waterproof	5 A	30.5 mm		Green LED	Off-Mom On-Mom	250 V	Solder Lug	Button Flush Round		Illuminated Standard	No Marking
EAO K14-271.222072	55 °C	-25 °C	1000000 Cycles	28 VAC/DC	Panel Mount Front	Yellow	DPST-NO/NC	IP67 - Dust Tight Waterproof	2 A 5 A	30.5 mm	24 V	LED Yellow	Off-On On-Off	250 V	Solder Lug	Button Flush Round	50000 Cycles	Illuminated Standard
EAO K14-131.211071	55 °C	-25 °C	2000000 Cycles	24 VAC/DC	Panel Mount Front	Yellow	DPST-NO/NC	IP67 - Dust Tight Waterproof	2 A 5 A	30.5 mm	24 V	LED Yellow	Off-Mom On-Mom	250 V	Quick Connect Solder	Button Flush Round	50000 Cycles	Illuminated Standard											0.11 in	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.75
		10	$ 53.52
		25	$ 49.93
		50	$ 47.98
		100	$ 44.71
