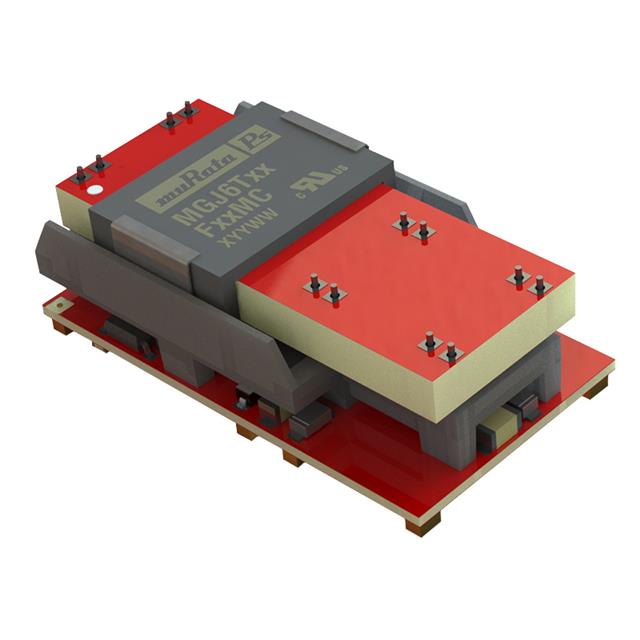

MGJ6T12F24MC-R7

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 24V 24V 6W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 24V 24V 6W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Efficiency	Package / Case	Voltage - Output 1	Applications	Mounting Type	Features	Voltage - Input (Max) [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 3	Voltage - Isolation	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Power Solutions Inc. MGJ6T12F24MC-R7	6 W	125 mA	62.5 mA	62.5 mA	9 V	84 %	9-SMD Module	24 V	ITE (Commercial) Medical	Surface Mount	SCP UVLO	18 V	3	-40 °C	105 ░C	24 V	5.2 kV	Isolated Module	14.1 mm	0.56 "	41.5 mm	1.63 "	0.89 in	22.6 mm	24 V
Murata Power Solutions Inc. MGJ6T12150505MC-R7	6 W				9 V		7-SMD Module	15 V	ITE (Commercial) Medical	Surface Mount	SCP UVLO	18 V	2	-40 °C	105 ░C		5.2 kV	Isolated Module	14.7 mm	0.58 "	31.2 mm	1.23 "	0.89 in	22.6 mm	-10 V	240 mA	240 mA
Murata Power Solutions Inc. MGJ6T12F24MC-R13	6 W	125 mA	62.5 mA	62.5 mA	9 V	84 %	9-SMD Module	24 V	ITE (Commercial) Medical	Surface Mount	SCP UVLO	18 V	3	-40 °C	105 ░C	24 V	5.2 kV	Isolated Module	14.1 mm	0.56 "	41.5 mm	1.63 "	0.89 in	22.6 mm	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 3 Output 24V 24V 24V 62.5mA, 62.5mA, 125mA 9V - 18V Input
