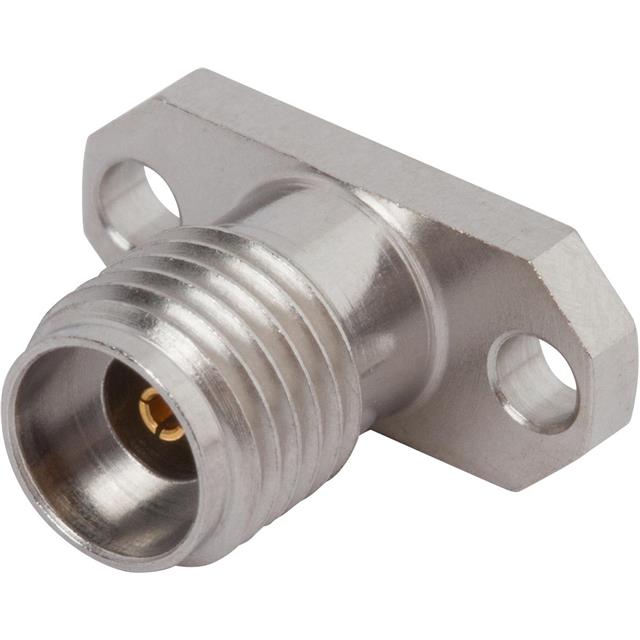

SF1552-6002

Active

Amphenol SV Microwave

CONN 2.92MM JK STR 50OHM COMPRES

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN 2.92MM JK STR 50OHM COMPRES

Technical Specifications

Parameters and characteristics for this part

Specification	SF1552-6002

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polyetherimide (PEI)
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Screw

Part	Dielectric Material	Body Material	Mounting Feature	Shield Termination	Mating Cycles	Features	Housing Color	Center Contact Plating	Connector Type	Connector Style	Number of Ports	Impedance	Center Contact Material	Frequency - Max [Max]	Contact Termination
Amphenol SV Microwave SF1552-6002	Polyetherimide (PEI)	Stainless Steel	Flange	Screw	500	Field Replaceable For Hermetically Sealed Pin	Silver	Gold	Female Socket Jack	2.92 mm	1	50 Ohms	Beryllium Copper	40 GHz	Compression

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Panel Mount Compression
