RS60SB-250

Active

OptiFuse

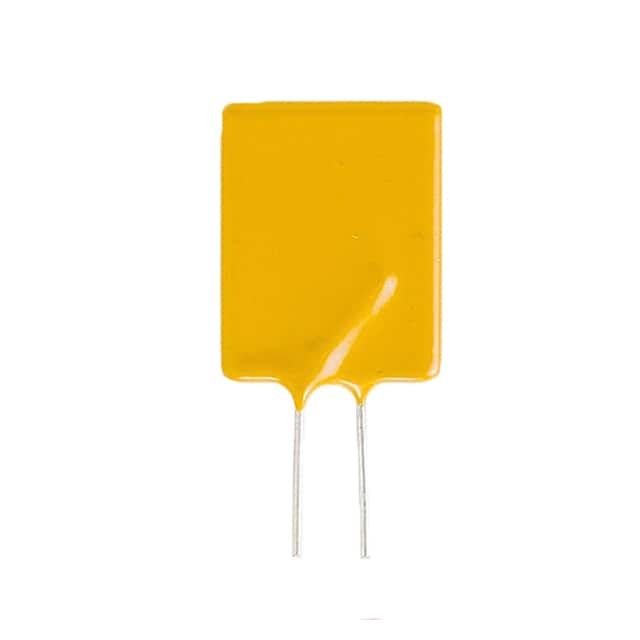

PTC RESET FUSE 60V 2.5A RADIAL

Search across all available documentation for this part.

Active

OptiFuse

PTC RESET FUSE 60V 2.5A RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	RS60SB-250

Current - Hold (Ih) (Max) [Max]	2.5 A
Current - Max [Max]	40 A
Current - Trip (It)	5 A
Height - Seated (Max) [Max]	0.811 in
Height - Seated (Max) [Max]	20.6 mm
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	40 mOhms
Resistance - Post Trip (R1) (Max) [Max]	140 mOhms
Size / Dimension [x]	14 mm
Size / Dimension [x]	0.551 in
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Time to Trip	15.6 s
Type	Polymeric
Voltage - Max [Max]	60 V

Part	Voltage - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Max [Max]	Current - Hold (Ih) (Max) [Max]	Package / Case	Current - Trip (It)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Time to Trip	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance - Post Trip (R1) (Max) [Max]	Mounting Type	Resistance - Initial (Ri) (Min) [Min]
OptiFuse RS60SB-250	60 V	85 °C	-40 °C	Polymeric	40 A	2.5 A	Disc Radial	5 A	3 mm	14 mm	0.551 in	0.118 in	15.6 s	5.1 mm	0.201 in	0.811 in	20.6 mm	140 mOhms	Through Hole	40 mOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 60V 2.5 A Ih Through Hole Radial, Disc
