G052505000

Active

Excelitas Technologies

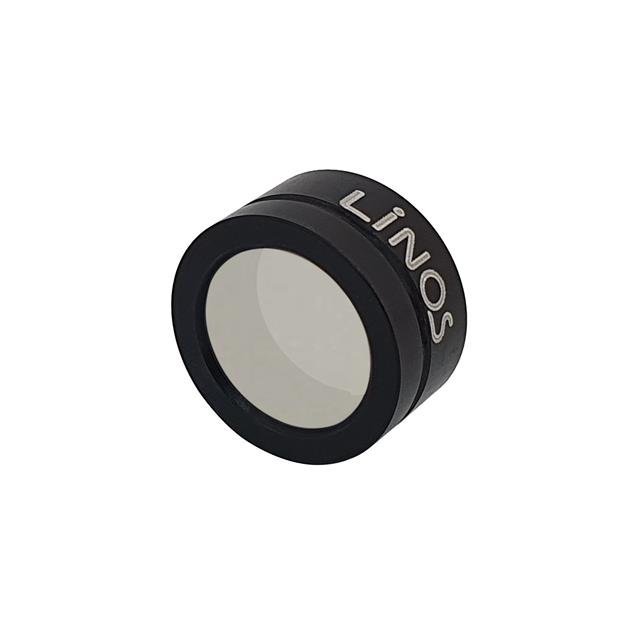

NEUTRAL FILTER; T=2%; D=12.7; MO

Search across all available documentation for this part.

Active

Excelitas Technologies

NEUTRAL FILTER; T=2%; D=12.7; MO

Technical Specifications

Parameters and characteristics for this part

Specification	G052505000

Clear Aperture	11 mm
Mounting Type	16 mm
Optic Diameter [diameter]	12.7 mm
Optical Density	1.7
Transmission	2 %
Type	Mounted Neutral Density Filter
Wavelength [Max]	2000 nm
Wavelength [Min]	400 nm

Part	Transmission	Mounting Type	Type	Optical Density	Optic Diameter [diameter]	Wavelength [Max]	Wavelength [Min]	Clear Aperture
Excelitas Technologies G052501000	50 %	16 mm	Mounted Neutral Density Filter	0.3	12.7 mm	2000 nm	400 nm	11 mm
Excelitas Technologies G052503000		16 mm	Mounted Neutral Density Filter	1	12.7 mm	2000 nm	400 nm	11 mm
Excelitas Technologies G052507000	0.1 %	16 mm	Mounted Neutral Density Filter	3	12.7 mm	2000 nm	400 nm	11 mm
Excelitas Technologies G052505000	2 %	16 mm	Mounted Neutral Density Filter	1.7	12.7 mm	2000 nm	400 nm	11 mm
Excelitas Technologies G052502000	20 %	16 mm	Mounted Neutral Density Filter	0.7	12.7 mm	2000 nm	400 nm	11 mm
Excelitas Technologies G052509000	40 %	16 mm	Mounted Neutral Density Filter	0.4	12.7 mm	2000 nm	400 nm	11 mm
Excelitas Technologies G052506000	1 %	16 mm	Mounted Neutral Density Filter	2	12.7 mm	2000 nm	400 nm	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 86.00

General part information

NEUTRAL FILTER; T=2%; D=12.7; MO
