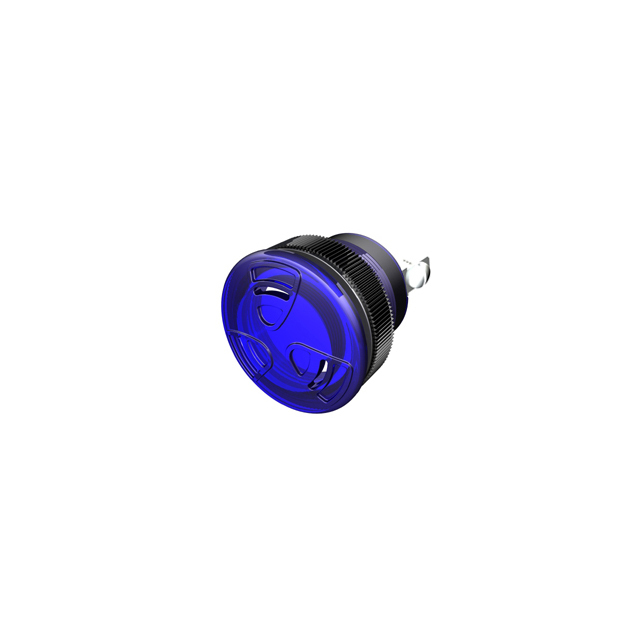

TLHW-88B-930-SF

Active

Floyd Bell Inc

BUZZER 33.02MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER 33.02MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	TLHW-88B-930-SF

Approval Agency	UR, UL
Current - Supply [Max]	110 mA
Current - Supply [Min]	50 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.9 kHz
Height - Seated (Max) [Max] [z]	1.18 in
Height - Seated (Max) [Max] [z]	29.97 mm
Ingress Protection	IP68 - Dust Tight, Waterproof
Input Type	DC
Operating Mode	Warble Fast
Port Location	Top
Size / Dimension [diameter]	1.3 in
Size / Dimension [diameter]	33.02 mm
Sound Pressure Level (SPL)	103 dB
Termination	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	30 V
Voltage Range [Min]	9 V

Part	Port Location	Current - Supply [Max]	Current - Supply [Min]	Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Mode	Approval Agency	Sound Pressure Level (SPL)	Ingress Protection	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Input Type	Voltage Range [Min]	Voltage Range [Max]	Driver Circuitry
Floyd Bell Inc TLHW-88B-930-SF	Top	110 mA	50 mA	2.9 kHz	1.3 in	33.02 mm	Warble Fast	UL UR	103 dB	IP68 - Dust Tight Waterproof	1.18 in	29.97 mm	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	DC	9 V	30 V	Indicator Internally Driven
Floyd Bell Inc TLHW-88B-930-QF	Top	110 mA	50 mA	2.9 kHz	1.3 in	33.02 mm	Warble Fast	UL UR	103 dB	IP68 - Dust Tight Waterproof	1.18 in	29.97 mm	Quick Connect Tab - 0.250" (6.35mm)	DC	9 V	30 V	Indicator Internally Driven
Floyd Bell Inc TLHW-88B-930-SS	Top	110 mA	50 mA	2.9 kHz	1.3 in	33.02 mm	Warble Slow	UL UR	103 dB	IP68 - Dust Tight Waterproof	1.18 in	29.97 mm	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	DC	9 V	30 V	Indicator Internally Driven
Floyd Bell Inc TLHW-88B-930-QS	Top	110 mA	50 mA	2.9 kHz	1.3 in	33.02 mm	Warble Slow	UL UR	103 dB	IP68 - Dust Tight Waterproof	1.18 in	29.97 mm	Quick Connect Tab - 0.250" (6.35mm)	DC	9 V	30 V	Indicator Internally Driven

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.41

General part information

Buzzers Indicator, Internally Driven 50 ~ 110mA 2.9kHz 103dB @ 30V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
