A768MS227M1GLAV022

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (SOLID POLYMER), 40V, 20% +TOL, 20% -TOL, 220UF, SURFACE MOUNT, 4341, CHIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA768MS227M1GLAV022 Spec KEM_A4088_A768.pdf +1

A768MS227M1GLAV022

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (SOLID POLYMER), 40V, 20% +TOL, 20% -TOL, 220UF, SURFACE MOUNT, 4341, CHIP

Deep-Dive with AI

DocumentsA768MS227M1GLAV022 Spec KEM_A4088_A768.pdf +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A768MS227M1GLAV022

Applications	Automotive
Capacitance	220 µF
ESR (Equivalent Series Resistance)	22 mOhms
Features	Anti-Vibration
Height - Seated (Max) [Max] [z]	13.2 mm
Height - Seated (Max) [Max] [z]	0.52 "
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ratings	AEC-Q200
Ripple Current @ High Frequency	2.2 A
Ripple Current @ Low Frequency	110 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Surface Mount Land Size [x]	0.425 "
Surface Mount Land Size [x]	10.8 mm
Surface Mount Land Size [y]	10.3 mm
Surface Mount Land Size [y]	0.406 "
Tolerance	20 %
Type	Polymer
Voltage - Rated	40 V

A768MS Series

Part	Ripple Current @ Low Frequency	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Package / Case	Applications	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Voltage - Rated	Capacitance	Features	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Type	ESR (Equivalent Series Resistance)	Tolerance	Ratings

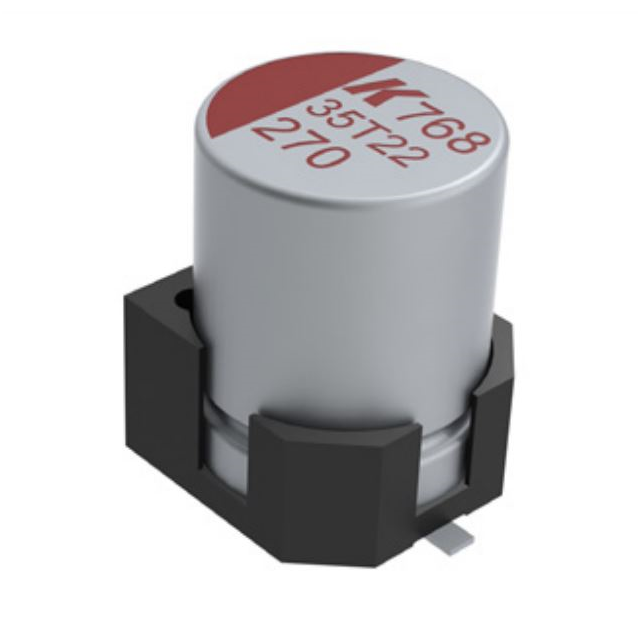

KEMET A768MS337M1VLAV022	110 mA	10.3 mm	0.406 "	0.425 "	10.8 mm	Radial Can - SMD	Automotive	Surface Mount	13.2 mm	0.52 "	2000 Hrs	35 V	330 µF	Anti-Vibration	10 mm	0.394 in	2.2 A	-55 °C	125 °C	Polymer	22 mOhms	20 %	AEC-Q200
KEMET A768MS567M1ELAE017	125 mA	10.3 mm	0.406 "	0.406 in	10.3 mm	Radial Can - SMD	General Purpose	Surface Mount	12.7 mm	0.5 in	2000 Hrs	25 VDC	560 µF		10 mm	0.394 in	2.5 A	-55 °C	125 °C	Polymer	17 mOhm	20 %
KEMET A768MS687M1DLAS015	130 mA	10.3 mm	0.406 "	0.406 in	10.3 mm	Radial Can - SMD	Automotive	Surface Mount	12.7 mm	0.5 in	2000 Hrs	20 V	680 µF		10 mm	0.394 in	2.6 A	-55 °C	125 °C	Polymer	15 mOhm	20 %	AEC-Q200
KEMET A768MS277M1GLAV022	110 mA	10.3 mm	0.406 "	0.425 "	10.8 mm	Radial Can - SMD	Automotive	Surface Mount	13.2 mm	0.52 "	2000 Hrs	40 V	270 µF	Anti-Vibration	10 mm	0.394 in	2.2 A	-55 °C	125 °C	Polymer	22 mOhms	20 %	AEC-Q200
KEMET A768MS687M1DLAE015	130 mA	10.3 mm	0.406 "	0.406 in	10.3 mm	Radial Can - SMD	General Purpose	Surface Mount	12.7 mm	0.5 in	2000 Hrs	20 V	680 µF		10 mm	0.394 in	2.6 A	-55 °C	125 °C	Polymer	15 mOhm	20 %
KEMET A768MS227M1GLAS022	110 mA	10.3 mm	0.406 "	0.406 in	10.3 mm	Radial Can - SMD	Automotive	Surface Mount	12.7 mm	0.5 in	2000 Hrs	40 V	220 µF		10 mm	0.394 in	2.2 A	-55 °C	125 °C	Polymer	22 mOhms	20 %	AEC-Q200
KEMET A768MS108M1CLAE015	135 mA	10.3 mm	0.406 "	0.406 in	10.3 mm	Radial Can - SMD	General Purpose	Surface Mount	12.7 mm	0.5 in	2000 Hrs	16 V	1000 µF		10 mm	0.394 in	2.7 A	-55 °C	125 °C	Polymer	15 mOhm	20 %
KEMET A768MS227M1GLAV022	110 mA	10.3 mm	0.406 "	0.425 "	10.8 mm	Radial Can - SMD	Automotive	Surface Mount	13.2 mm	0.52 "	2000 Hrs	40 V	220 µF	Anti-Vibration	10 mm	0.394 in	2.2 A	-55 °C	125 °C	Polymer	22 mOhms	20 %	AEC-Q200
KEMET A768MS566M1KLAE034	90 mA	10.3 mm	0.406 "	0.406 in	10.3 mm	Radial Can - SMD	General Purpose	Surface Mount	12.7 mm	0.5 in	2000 Hrs	80 V	56 µF		10 mm	0.394 in	1.8 A	-55 °C	125 °C	Polymer	34 mOhm	20 %
KEMET A768MS107M1JLAV027	100 mA	10.3 mm	0.406 "	0.425 "	10.8 mm	Radial Can - SMD	Automotive	Surface Mount	13.2 mm	0.52 "	2000 Hrs	63 V	100 µF	Anti-Vibration	10 mm	0.394 in	2 A	-55 °C	125 °C	Polymer	27 mOhms	20 %	AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.70
		10	$ 2.08
		50	$ 1.91
		100	$ 1.58
	Digi-Reel®	1	$ 2.70
		10	$ 2.08
		50	$ 1.91
		100	$ 1.58
	Tape & Reel (TR)	400	$ 1.43
		800	$ 1.19
		1200	$ 1.11
		2000	$ 1.07
		4000	$ 1.03

Description

General part information

A768MS Series

220 µF 40 V Aluminum - Polymer Capacitors Radial, Can - SMD 22mOhm 2000 Hrs @ 125°C

Documents

Technical documentation and resources

A768MS227M1GLAV022 Spec

Datasheet

KEM_A4088_A768.pdf

Datasheet
