C4BSPBX4150ZBLJ

Active

KEMET

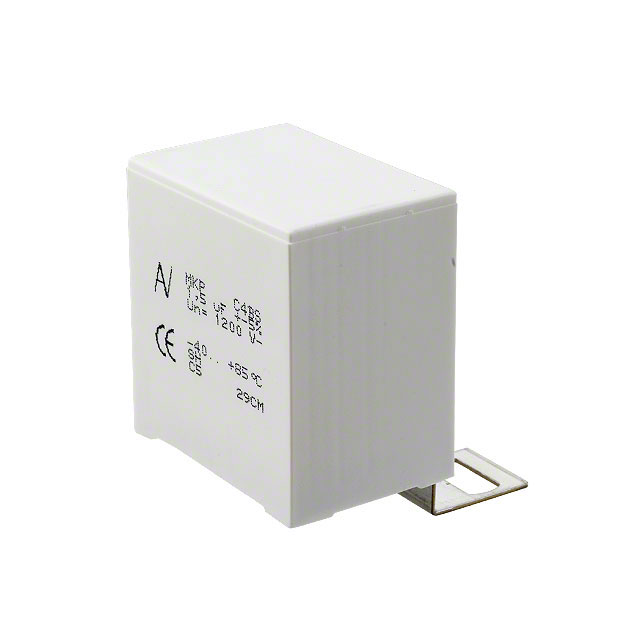

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - TABS, 1.5 ΜF, ± 5%, SNUBBER, PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Film Capacitors Catalog +4

C4BSPBX4150ZBLJ

Active

KEMET

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - TABS, 1.5 ΜF, ± 5%, SNUBBER, PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet Power Film Capacitors Catalog +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4BSPBX4150ZBLJ

Applications	DC Link, DC Filtering, Snubber
Capacitance	1.5 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	2.3 mOhms
Height - Seated (Max) [Max] [z]	1.772 in
Height - Seated (Max) [Max] [z]	45 mm
Lead Spacing	0.866 in
Lead Spacing	22 mm
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Rectangular Box
Size / Dimension [x]	42 mm
Size / Dimension [x]	1.654 in
Size / Dimension [y]	1.181 in
Size / Dimension [y]	30 mm
Termination	Screw Terminals
Tolerance	5 %
Voltage Rating - AC	630 V
Voltage Rating - DC	1200 V
Voltage Rating - DC	1.2 kV

C4BSPB Series

Part	Package / Case	Mounting Type	Dielectric Material	Voltage Rating - AC	Termination	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Applications	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C4BSPBX4150ZBLJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	2.3 mOhms	0.866 in	22 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	42 mm	1.181 in	1.654 in	30 mm	1.5 µF	1.772 in	45 mm
KEMET C4BSPBX4300ZBNJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	2.5 mOhms	1.457 in	37 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	57.5 mm	1.378 "	2.264 in	35 mm	3 µF
KEMET C4BSPBX4300ZANJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	2.5 mOhms	1.614 in	41 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	57.5 mm	1.378 "	2.264 in	35 mm	3 µF
KEMET C4BSPBX3680ZBFJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	4.7 mOhms	0.866 in	22 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	41.5 mm	0.787 in	1.634 "	20 mm	680 nF	1.575 in	40 mm
KEMET C4BSPBX3470ZBFJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	6.7 mOhms	0.866 in	22 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	41.5 mm	0.787 in	1.634 "	20 mm	0.47 µF	1.575 in	40 mm
KEMET C4BSPBX4120ZBJJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	2.8 mOhms	0.866 in	22 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	42.5 mm	1.102 in	1.673 in	28 mm	1.2 µF	1.457 in	37 mm
KEMET C4BSPBX3470ZAFJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	6.7 mOhms	1.004 in	25.5 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	41.5 mm	0.787 in	1.634 "	20 mm	0.47 µF	1.575 in	40 mm
KEMET C4BSPBX4200ZAMJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	3.6 mOhms	1.614 in	41 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	57.5 mm	1.181 in	2.264 in	30 mm	2 µF	1.772 in	45 mm
KEMET C4BSPBX4120ZB0J	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	2.8 mOhms	0.866 in	22 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	42.5 mm	1.102 in	1.673 in	28 mm	1.2 µF	1.457 in	37 mm
KEMET C4BSPBX4200ZBMJ	Rectangular Box	Chassis Mount	Metallized Polypropylene (PP)	630 V	Screw Terminals	3.6 mOhms	1.457 in	37 mm	DC Filtering DC Link Snubber	5 %	85 °C	-40 °C	1200 V	1.2 kV	57.5 mm	1.181 in	2.264 in	30 mm	2 µF	1.772 in	45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.05
		32	$ 14.45
		64	$ 12.84
		128	$ 11.56
		512	$ 10.67
Newark	Each	100	$ 11.56

Description

General part information

C4BSPB Series

The C4BS Series is a polypropylene metallized film with rectangular plastic box type filled with resin and tinned brass lugs.Typical applications include IGBT devices.
