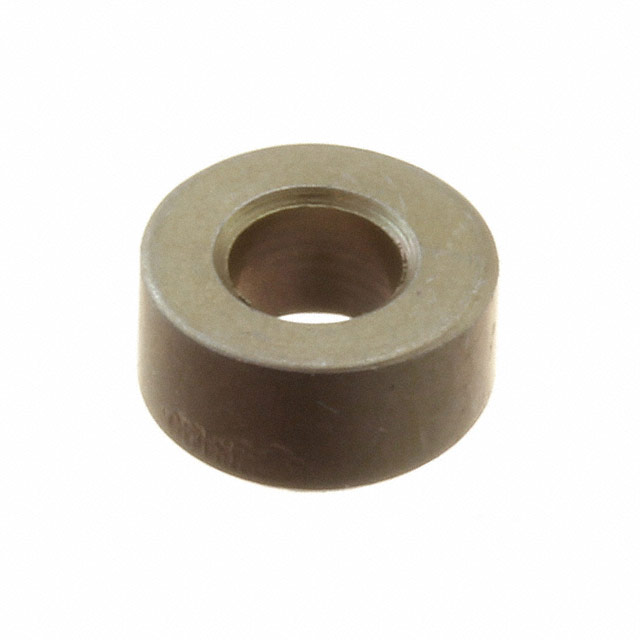

1122-4-AL-6

Active

RAF Electronic Hardware

1/4 RD X 1/8 X 0.115

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPlating,Finish Codes,Materials Options 1122-1152 Cut Sheet

1122-4-AL-6

Active

RAF Electronic Hardware

1/4 RD X 1/8 X 0.115

Deep-Dive with AI

DocumentsPlating,Finish Codes,Materials Options 1122-1152 Cut Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1122-4-AL-6

Between Board Height	0.125 in
Between Board Height	3.18 mm
Between Board Height	0.125 in
Color	Gold
Diameter - Inside [diameter]	0.115 in
Diameter - Inside [diameter]	2.92 mm
Diameter - Outside [diameter]	6.35 mm
Diameter - Outside [diameter]	0.25 in
Diameter - Outside [diameter]	0.25 in
Gender	Female
Length - Overall	0.125 "
Length - Overall	3.18 mm
Length - Overall	0.125 "
Material	Aluminum
Plating	Iridite
Threaded/Unthreaded	Unthreaded
Type	Round Spacer

1122 Series

Part	Threaded/Unthreaded	Material	Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Gender	Between Board Height	Between Board Height	Between Board Height	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length - Overall	Length - Overall	Length - Overall	Plating	Color	Length - Overall [x]	Length - Overall [x]
RAF Electronic Hardware 1122-2-SS	Unthreaded	Stainless Steel	Round Spacer	0.09 in	2.29 mm	Female	0.125 in	3.18 mm	0.125 in	6.35 mm	0.25 in	0.25 in	0.125 "	3.18 mm	0.125 "
RAF Electronic Hardware 1122-6-SS	Unthreaded	Stainless Steel	Round Spacer	0.14 in	3.56 mm	Female	0.125 in	3.18 mm	0.125 in	6.35 mm	0.25 in	0.25 in	0.125 "	3.18 mm	0.125 "
RAF Electronic Hardware 1122-4-AL-6	Unthreaded	Aluminum	Round Spacer	0.115 in	2.92 mm	Female	0.125 in	3.18 mm	0.125 in	6.35 mm	0.25 in	0.25 in	0.125 "	3.18 mm	0.125 "	Iridite	Gold
RAF Electronic Hardware 1122-4-AL-7	Unthreaded	Aluminum	Round Spacer	0.115 in	2.92 mm	Female	0.125 in	3.18 mm	0.125 in	6.35 mm	0.25 in	0.25 in	0.125 "	3.18 mm	0.125 "	Iridite
RAF Electronic Hardware 1122-6-N	Unthreaded	Nylon	Round Spacer	0.14 in	3.56 mm	Female	0.125 in	3.18 mm	0.125 in	6.35 mm	0.25 in	0.25 in	0.125 "	3.18 mm	0.125 "
RAF Electronic Hardware 1122A-4-B	Unthreaded	Brass	Round Spacer	0.115 in	2.92 mm	Female		2.38 mm	0.094 in	6.35 mm	0.25 in	0.25 in						0.094 in	2.38 mm
RAF Electronic Hardware 1122-8-B-12	Unthreaded	Brass	Round Spacer	0.166 in	4.22 mm	Female	0.125 in	3.18 mm	0.125 in	6.35 mm	0.25 in	0.25 in	0.125 "	3.18 mm	0.125 "	Chromate Zinc	Clear
RAF Electronic Hardware 1122-4-N	Unthreaded	Nylon	Round Spacer	0.115 in	2.92 mm	Female	0.125 in	3.18 mm	0.125 in	6.35 mm	0.25 in	0.25 in	0.125 "	3.18 mm	0.125 "
RAF Electronic Hardware 1122-8-SS	Unthreaded	Stainless Steel	Round Spacer	0.166 in	4.22 mm	Female	0.125 in	3.18 mm	0.125 in	6.35 mm	0.25 in	0.25 in	0.125 "	3.18 mm	0.125 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.14
		5	$ 0.12
		10	$ 0.10
		25	$ 0.10
		50	$ 0.09
		100	$ 0.08
		250	$ 0.08
		500	$ 0.07
		1000	$ 0.07

Description

General part information

1122 Series

Round Spacer Unthreaded Aluminum 0.125" (3.18mm) 1/8" Gold

Documents

Technical documentation and resources

Plating,Finish Codes,Materials Options

1122-1152 Cut Sheet

Datasheet
