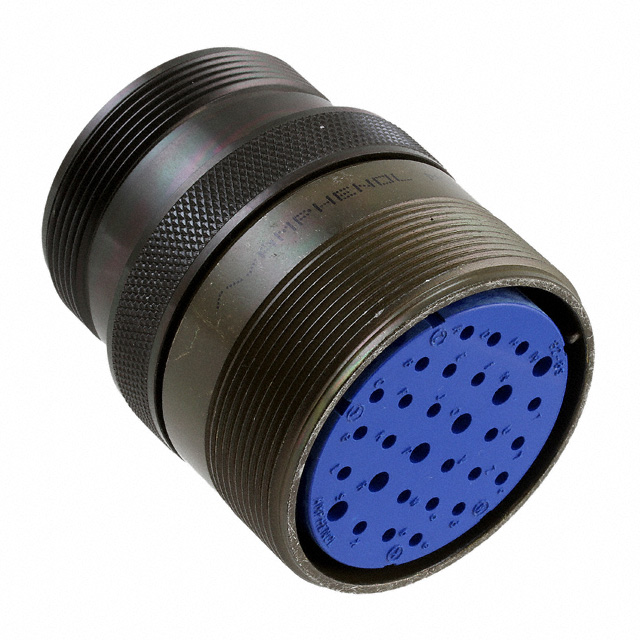

97-3101A-32-8S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 30P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN RCPT FMALE 30P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	97-3101A-32-8S

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Backshell
Insert Material	Diallyl Phthalate (DAP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	30
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	32-8
Shielding	Unshielded

Part	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Orientation	Shielding	Contact Finish - Mating	Number of Positions	Shell Size - Insert	Shell Material	Contact Material	Applications	Color	Shell Finish	Primary Material	Features
Amphenol Industrial Operations 97-3101A-32-8S	Free Hanging (In-Line)	Receptacle Female Sockets	-55 °C	125 °C	Diallyl Phthalate (DAP)	N	Unshielded	Silver	30	32-8	Aluminum Alloy	Copper Alloy	Automotive Industrial	Olive Drab	Olive Drab Chromate over Cadmium	Metal	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Circular Connector Receptacle, Female Sockets Solder Cup
