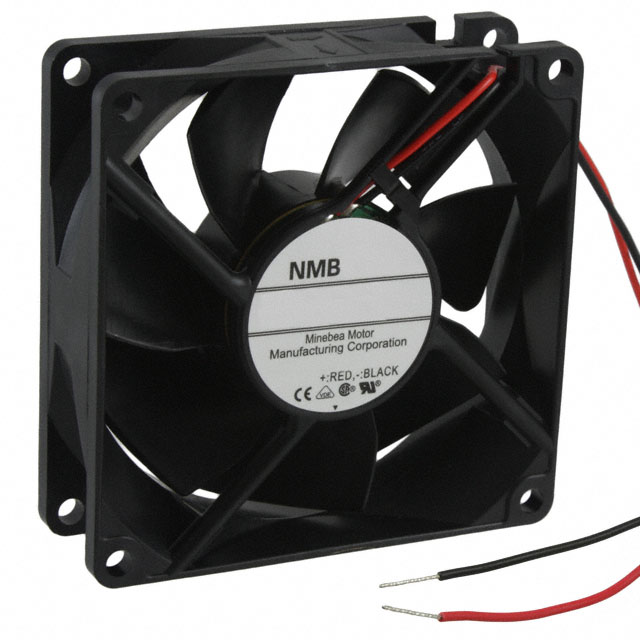

3110KL-05W-B60-G00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fan Agency Approvals +1

3110KL-05W-B60-G00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Fan Agency Approvals +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3110KL-05W-B60-G00

Air Flow	1.13 mł/min
Air Flow	40.2 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	140 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	35 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.36 W
RPM	3400 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	10 VDC
Width [y]	25 mm

3110KL Series

Part	Air Flow	Air Flow	Lifetime @ Temp.	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Bearing Type	Noise	Termination	RPM	Approval Agency	Material - Blade	Power (Watts)	Material - Frame	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Features
NMB TECHNOLOGIES 3110KL-05W-B60-G00	1.13 mł/min	40.2 CFM	70000 Hrs	Tubeaxial	26.4 VDC	10 VDC	140 mA	25 mm	70 °C	70 °C	-10 °C	-10 °C	24 VDC	Ball	35 dB	2 Wire Leads	3400 RPM	CE CSA UL VDE	Plastic	3.36 W	Plastic	80 mm	80 mm
NMB TECHNOLOGIES 3110KL-04W-B79-D00	1.29 mł/min	45.9 CFM	70000 Hrs	Tubeaxial	13.8 VDC	6 VDC	0.29 A	25 mm	60 °C	60 °C	-10 °C	-10 °C	12 VDC	Ball	40 dB(A)	3 Wire Leads	4000 RPM	CE CSA UL VDE	Plastic	3.86 W	Plastic	80 mm	80 mm	64.4 Pa	0.258 in H2O	Locked Rotor Sensor
NMB TECHNOLOGIES 3110KL-04W-B50-G00	1.09 m³/min	38.8 CFM	70000 Hrs	Tubeaxial	13.8 VDC	6 VDC	0.23 A	25 mm	70 °C	70 °C	-10 °C	-10 °C	12 VDC	Ball	34 dB(A)	2 Wire Leads	3250 RPM	CE CSA UL VDE	Plastic	2.76 W	Plastic	80 mm	80 mm	37.1 Pa	0.149 in H2O
NMB TECHNOLOGIES 3110KL-05W-B30-D00	0.89 m³/min	31.8 CFM	70000 Hrs	Tubeaxial	27.6 VDC	10 VDC		25 mm	70 °C	70 °C	-10 °C	-10 °C	24 VDC	Ball	28 dB	2 Wire Leads	2700 RPM	CE CSA UL VDE	Plastic	1.92 W	Plastic	80 mm	80 mm	26.4 Pa	0.106 in H2O
NMB TECHNOLOGIES 3110KL-05W-B59-G00	1.09 m³/min	38.8 CFM	70000 Hrs	Tubeaxial	27.6 VDC	10 VDC	120 mA	25 mm	70 °C	70 °C	-10 °C	-10 °C	24 VDC	Ball	34 dB(A)	3 Wire Leads	3250 RPM	CE CSA UL VDE	Plastic	2.88 W	Plastic	80 mm	80 mm	37.1 Pa	0.149 in H2O	Locked Rotor Sensor
NMB TECHNOLOGIES 3110KL-04W-B60-G00	1.13 mł/min	40.2 CFM	70000 Hrs	Tubeaxial	13 VDC	6 VDC	0.26 A	25 mm	70 °C	70 °C	-10 °C	-10 °C	12 VDC	Ball	35 dB	2 Wire Leads	3400 RPM	CE CSA UL VDE	Plastic	3.12 W	Plastic	80 mm	80 mm
NMB TECHNOLOGIES 3110KL-05W-B40-D00	0.988 mł/min	35.3 CFM	70000 Hrs	Tubeaxial	27.6 VDC	10 VDC	100 mA	25 mm	70 °C	70 °C	-10 °C	-10 °C	24 VDC	Ball	31 dB(A)	2 Wire Leads	3000 RPM	CE CSA UL VDE	Plastic	2.4 W	Plastic	80 mm	80 mm	32.1 Pa	0.129 in H2O
NMB TECHNOLOGIES 3110KL-04W-B20-G00	0.79 mł/min	28.2 CFM	70000 Hrs	Tubeaxial	13.8 VDC	6 VDC	110 mA	25 mm	70 °C	70 °C	-10 °C	-10 °C	12 VDC	Ball	25 dB(A)	2 Wire Leads	2400 RPM	CE CSA UL VDE	Plastic	1.32 W	Plastic	80 mm	80 mm	21.7 Pa	0.087 in H2O
NMB TECHNOLOGIES 3110KL-04W-B50-D00	1.09 m³/min	38.8 CFM	70000 Hrs	Tubeaxial	13.8 VDC	6 VDC	0.23 A	25 mm	70 °C	70 °C	-10 °C	-10 °C	12 VDC	Ball	34 dB(A)	2 Wire Leads	3250 RPM	CE CSA UL VDE	Plastic	2.76 W	Plastic	80 mm	80 mm	37.1 Pa	0.149 in H2O
NMB TECHNOLOGIES 3110KL-05W-B10-D00	0.692 mł/min	24.7 CFM	70000 Hrs	Tubeaxial	27.6 VDC	10 VDC	60 mA	25 mm	70 °C	70 °C	-10 °C	-10 °C	24 VDC	Ball	22 dB(A)	2 Wire Leads	2150 RPM	CE CSA UL VDE	Plastic	1.44 W	Plastic	80 mm	80 mm	16.7 Pa	0.067 in H2O

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3110KL Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 40.2 CFM (1.13m³/min) 2 Wire Leads
