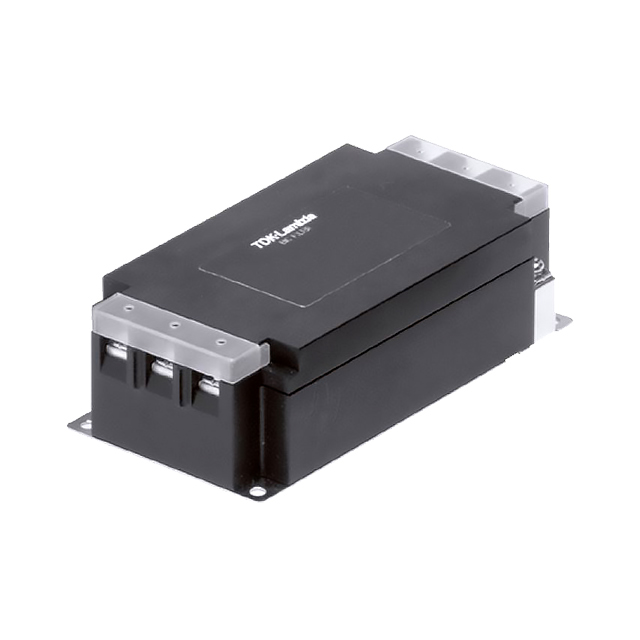

RTCN-5030

Active

TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 30 A, THREE PHASE, 1 STAGE, CHASSIS MOUNT

Search across all available documentation for this part.

Active

TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 30 A, THREE PHASE, 1 STAGE, CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Current	Voltage - Rated AC	Configuration	Filter Type	Voltage - Rated DC	Termination Style	Applications	Mounting Type
TDK-LAMBDA RTCN-5080	-25 °C	85 °C	EN UL	80 A	500 V	Single Stage	Three Phase (Delta)	500 V	Terminal Block	General Purpose	Chassis Mount
TDK-LAMBDA RTCN-5006	-25 °C	85 °C	EN UL	6 A	500 V	Single Stage	Three Phase (Delta)	500 V	Terminal Block	General Purpose	Chassis Mount
TDK-LAMBDA RTCN-5030	-25 °C	85 °C	EN UL	30 A	500 V	Single Stage	Three Phase (Delta)	500 V	Terminal Block	General Purpose	Chassis Mount
TDK-LAMBDA RTCN-5050	-25 °C	85 °C	EN UL	50 A	500 V	Single Stage	Three Phase (Delta)	500 V	Terminal Block	General Purpose	Chassis Mount
TDK-LAMBDA RTCN-5060	-25 °C	85 °C	EN UL	60 A	500 V	Single Stage	Three Phase (Delta)	500 V	Terminal Block	General Purpose	Chassis Mount
TDK-LAMBDA RTCN-5200	-25 °C	85 °C	EN	200 A	500 V	Single Stage	Three Phase (Delta)	500 V	Terminal Block	General Purpose	Chassis Mount
TDK-LAMBDA RTCN-5100	-25 °C	85 °C	EN UL	100 A	500 V	Single Stage	Three Phase (Delta)	500 V	Terminal Block	General Purpose	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 30 A 500V 500V Single Stage Terminal Block
