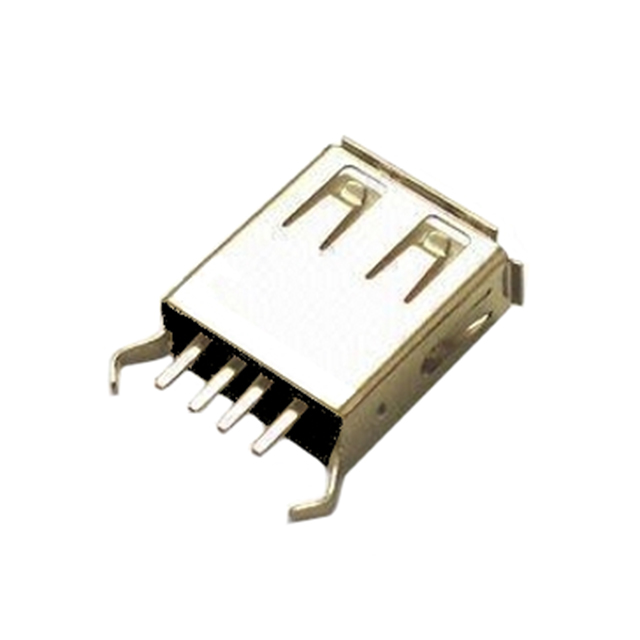

USB-A1VSW60
ActiveOn Shore Technology Inc.
CONN RCPT TYPEA 4POS VERT
Deep-Dive with AI
Search across all available documentation for this part.
USB-A1VSW60
ActiveOn Shore Technology Inc.
CONN RCPT TYPEA 4POS VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB-A1VSW60 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Insulation Color | White |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.78 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.62 | |||
| 40 | $ 0.58 | |||
| 120 | $ 0.56 | |||
| 240 | $ 0.51 | |||
| 480 | $ 0.48 | |||
| 960 | $ 0.40 | |||
| 2400 | $ 0.36 | |||
Description
General part information
USB-A1V Series
USB-A (USB TYPE-A) Receptacle Connector 4 Position Through Hole
