SJ-2513-SMT

Obsolete

CUI Devices

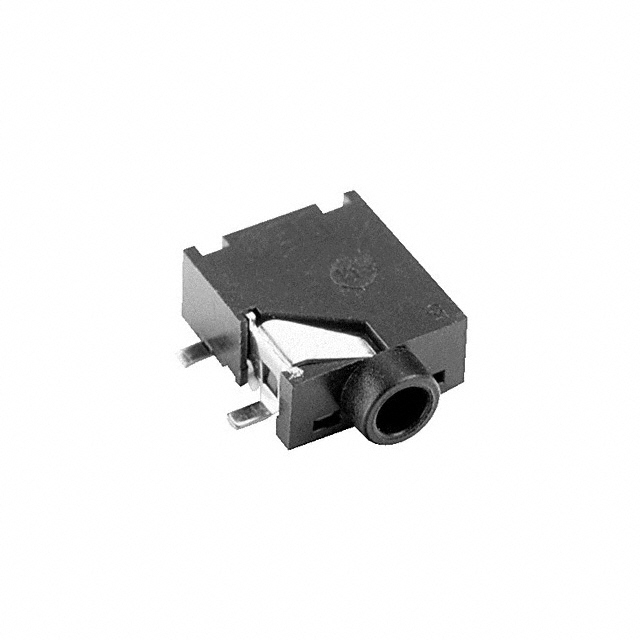

CONN JACK STEREO 2.5MM SMD R/A

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN JACK STEREO 2.5MM SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SJ-2513-SMT

Actual Diameter [diameter]	2.6 mm
Actual Diameter [diameter]	0.102 in
Body Color	Black
Connector Type	Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Gold
Current Rating (Amps)	1 A
Gender	Female
Housing Material	Polyamide (PA6T), Nylon 6T
Industry Recognized Mating Diameter	0.094 in
Industry Recognized Mating Diameter	2.5 mm
Industry Recognized Mating Diameter	3 /32"
Internal Switch(s)	False
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder
Voltage - Rated	12 VDC

Part	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Voltage - Rated	Signal Lines	Current Rating (Amps)	Features	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Contact Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Body Color	Contact Material - Plating [custom]	Housing Material	Contact Material - Plating
CUI Devices SJ-2503A-SMT-TR	Unshielded	3	3	Solder	12 VDC	Stereo	1 A	Board Guide	Surface Mount Right Angle	Phone Jack	-25 °C	85 °C	Female	Copper Alloy	2.6 mm	0.102 in	0.094 in	2.5 mm	3 /32"	Black	Silver	Polyamide (PA10T) Nylon 10T
CUI Devices SJ-25014A-SMT-TR	Unshielded	4	4	Solder	12 VDC	Stereo	1 A	Board Guide	Surface Mount Right Angle	Phone Jack	-25 °C	85 °C	Female	Copper Alloy	2.6 mm	0.102 in	0.094 in	2.5 mm	3 /32"	Black	Gold	Polyamide (PA10T) Nylon 10T
CUI Devices SJ-2513-SMT	Unshielded	3	3	Solder	12 VDC	Stereo	1 A		Surface Mount Right Angle	Phone Jack	-25 °C	85 °C	Female	Copper Alloy	2.6 mm	0.102 in	0.094 in	2.5 mm	3 /32"	Black	Gold	Polyamide (PA6T) Nylon 6T
CUI Devices SJ-2509N	Unshielded	3	3	Solder	12 VDC	Stereo	1 A		Through Hole Right Angle	Phone Jack	-20 C	60 °C	Female	Brass	2.6 mm	0.102 in	0.094 in	2.5 mm	3 /32"	Black		Polybutylene Terephthalate (PBT)	Tin
CUI Devices SJ-2509N	Unshielded	3	3	Solder	12 VDC	Stereo	1 A		Through Hole Right Angle	Phone Jack	-20 C	60 °C	Female	Brass	2.6 mm	0.102 in	0.094 in	2.5 mm	3 /32"	Black		Polybutylene Terephthalate (PBT)	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
