VFP69383B22JN-518J

Active

TE Connectivity Raychem Cable Protection

INFRA M2M,VEHICULAR,MIMO FIN PROFILE,5 P

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

INFRA M2M,VEHICULAR,MIMO FIN PROFILE,5 P

Technical Specifications

Parameters and characteristics for this part

Specification	VFP69383B22JN-518J

Antenna Type	Module
Applications	Beidou, GLONASS, LTE, GPS, Wi-Fi, ISM
Features	Cable - 5.18M, LNA
Frequency (Center/Band)	2.745 GHz, 1.6015 GHz, 1.561 GHz, 920 MHz, 859 MHz, 752 MHz, 5.45 GHz, 2.45 GHz, 1.575 GHz
Frequency Group	Wide Band
Frequency Range [Max]	806 MHz, 1.563 GHz, 960 MHz, 1.576 GHz, 2.5 GHz, 3.8 GHz, 1.605 GHz, 6 GHz, 894 MHz
Frequency Range [Min]	2.4 GHz, 880 MHz, 1.598 GHz, 1.69 GHz, 824 MHz, 4.9 GHz, 1.574 GHz, 1.559 GHz, 698 MHz
Gain	0.4 dBi, 1.2 dBi, 2 dBic, 4 dBi, 2.6 dBi, 6.6 dBi, 0.8 dBi
Height (Max) [Max]	48 mm
Height (Max) [Max]	1.89 in
Ingress Protection	IP67
Number of Bands	9
Power - Max [Max]	10 W
RF Family/Standard	WiFi, Cellular, General ISM, Navigation
VSWR	2

Part	Number of Bands	Features	Height (Max) [Max]	Height (Max) [Max]	Antenna Type	Frequency Group	VSWR	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Applications	Ingress Protection	Frequency (Center/Band)	Power - Max [Max]	Gain
TE Connectivity Raychem Cable Protection VFP69383B22JN-518J	9	Cable - 5.18M LNA	48 mm	1.89 in	Module	Wide Band	2	Cellular General ISM Navigation WiFi	1.563 GHz 1.576 GHz 1.605 GHz 2.5 GHz 3.8 GHz 6 GHz 806 MHz 894 MHz 960 MHz	1.559 GHz 1.574 GHz 1.598 GHz 1.69 GHz 2.4 GHz 4.9 GHz 698 MHz 824 MHz 880 MHz	Beidou GLONASS GPS ISM LTE Wi-Fi	IP67	1.561 GHz 1.575 GHz 1.6015 GHz 2.45 GHz 2.745 GHz 5.45 GHz 752 MHz 859 MHz 920 MHz	10 W	0.4 dBi 0.8 dBi 1.2 dBi 2 dBic 2.6 dBi 4 dBi 6.6 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

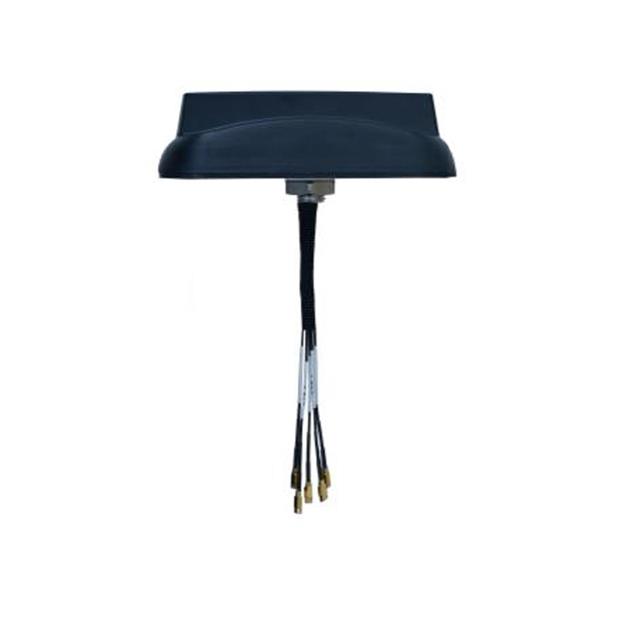

Shark Fin Antenna, Multi Band, Vehicular, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Multiple Ports, > 6 dBi Peak Gain
